RTD / TC

View:

eYc RTD/TC series

eYc TP04-S RTD Temperature sensor

Measuring range : - 70 ... + 200 °C
Electrical connection : DIN 43650 ABS
Connection method : 2-wire ; 3-wire
Accuracy tolerance :
RTD Class A ± ( 0.15 + 0.002 | t | ) : - 40 °C ... 200 °C
Class B ± ( 0.15 + 0.002 | t | ) : - 70 °C ... 200 °C
●Additional option (ILAC/TAF) Test report - Standard Calibration laboratory(Leb number: 3032)

eYc TP02 Temperature Transmitter for DIN-rail Type

Product features:Special IC for RTD;high accuracy is assured.High quality and low price.
Input:Pt100(3-wire)
Output:DC 4...20 mA(2-wire)
Accuracy:0.1% of F.S.
Temperature range:-50...+ 50°C / - 50...0°C / 0...50°C / 0...100°C/0...200°C or special range
●Additional option:( ILAC/TAF ) Test report - Standard calibration laboratory ( TAF accreditation:3032, complying with ISO/IEC 17025 )
TAF has mutual recognition arrangement with ILAC MRA

eYc RTDXST3

eYc EX-R1 RTD/TC Explosion proof type

============================================
Feature :
★ Resistance >> PT100 / PT500 / PT1000
★ Output >> PT 100Ω / 4 ... 20 mA
★ Accuracy >> A±(0.15 + 0.002 | t |) ; B±(0.3 + 0.005 | t |)
✔ Screw thread >> 1/4 ; 1/2 ( Customization )
============================================

eYc EX-R2 RTD/TC Explosion proof type(Flange)

============================================
Feature :
★ Resistance >> PT100 / PT500 / PT1000
★ Output >> PT 100Ω / 4 ... 20 mA
★ Accuracy >> A±(0.15 + 0.002 | t |) ; B±(0.3 + 0.005 | t |)
✔ Flange >> 30-30-1/2-5kg ; 30-30-1/2-10kg (optional)
============================================

eYc EX-RT3 RTD/TC Explosion proof type

============================================
Feature :
★ Resistance >> PT100 / PT500 / PT1000
★ Output >> PT 100Ω / 4 ... 20 mA
★ Accuracy >> A±(0.15 + 0.002 | t |) ; B±(0.3 + 0.005 | t |)
✔ Screw thread >> 1/4 ; 1/2 ( Customization )
✔ Casing outer tooth screw >> 1/2" ; 3/4" ; 1"
============================================

eYc EX-RT4 RTD/TC Explosion proof type(Flange)

============================================
Feature :
★ Resistance >> PT100 / PT500 / PT1000
★ Output >> PT 100Ω / 4 ... 20 mA
★ Accuracy >> A±(0.15 + 0.002 | t |) ; B±(0.3 + 0.005 | t |)
✔ Flange >> 30-30-1/2-5kg ; 30-30-1/2-10kg (optional)
✔ Screw thread >> 1/4 ; 1/2 ( Customization )
============================================

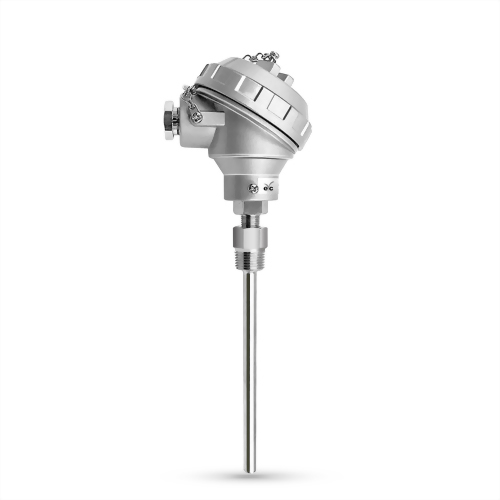

eYc T1 Assembled thermocouple temp. sensor( fixed thread type)

Features :
Type : K ; J ; E ; T
Wire OD : 0.65 / 1.0 / 1.6 / 2.3 / 3.2
Junction box : KN/KS/KD
Screw thread : PF1/2 ; PF1/4 ; G1/2

eYc R1 RTD Assembled thermistor thermometer sensor (fixed thread type)

Features :
Resistance :PT100/PT500/PT1000
Accuracy : A±( 0.15+0.002 | t | ) ; B±( 0.3 +0.005 | t | )
Junction box : KN/KS/KD
Screw thread : 1/4 ; 1/2 ; 3/8 ; 3/4 ; 1

eYc EX-T1 RTD/TC Explosion proof type

Feature :
Type : K : Ni-Cr / Ni-Al ; J : Fe / Cu-Ni ; E : Ni-Cr/Cu-Ni ; T : Cu/Cu-Ni
Output : K/J/E/T : 4 ... 20 mA / mV
Accuracy : 0.4 ± ( 0.004 x | t | ) ; 0.75 ± ( 0.0075 x | t | )
Wire OD : 0.65mm : 650 ... 850°C ; 1.0mm : 750 ... 950°C
Screw thread : 1/4 ; 1/2 ( optional )
