Features
● Measuring range: 10 m/s；20 m/s
● Highly stability and repeatability
● Smaller tolerance in setting angle
● An economical choice, high C/P ratio
● Highly stability and repeatability
● Smaller tolerance in setting angle
● An economical choice, high C/P ratio
Applications
Monitoring for HVAC process / Environmental control and clean room / Laminar flow control
Specification
Input |
|
Measuring range |
10 m/s ; 20 m/s |
Min. measuring range |
0.2 m/s |
Output |
|
Output signal |
DC 0 ... 10 V |
Signal connection |
3-Wire |
Load resistance(voltage output) |
＞10KΩ |
Response time |
t90 ≦ 1 sec |
Angular dependence |
<3% measuring range (install degree < 10°) |
Accuracy(+25°C) |
|
Accuracy |
±5% F.S. |
Environment |
|
Measuring medium |
Air |
Operating Temp. |
15 ... 35°C |
Environment humidity |
10 ... 90 %RH (Non-condensing) |
Storage Temp. |
-10 ... +60°C |
Electrical |
|
Power supply |
DC 24 V ±20% |
Current consumption |
<70 mA |
Overvoltage protection |
DC <35 V |
Electrical connection |
PVC cable 0.32 mm² x 3C |

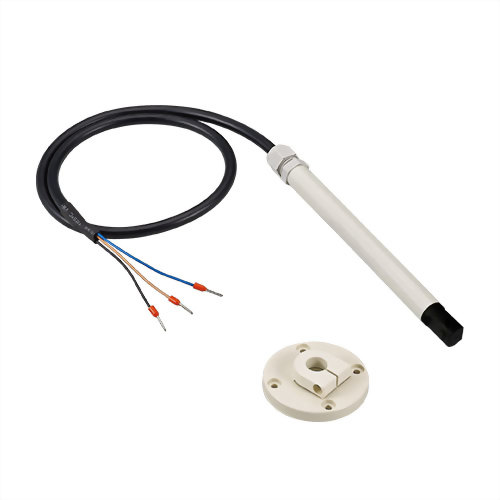

Installation |
|
Fixed seat |
Flange installation |
Installation |
Probe type |
Protection |
|
IP rating |
IP 20 |
Electrical protection |
■ Reverse polarity |
Certification |
|
Certification |
CE |
Material |
|
Housing |
PC fire-proof(UL94V-2) |
Filter |
PC with glass fiber |
Cable |
PVC |
Weight |
25 g(Without cable) |
Download
Note : Design and specifications are subject to change without notice.
Note : Please make sure the product and the device which connect with RS-485 are on common ground, avoid damaged product.
