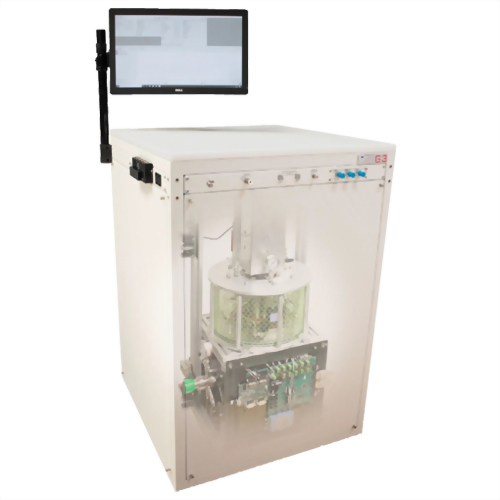

RH Systems G3 Frost Point Generator

Generated Humidity Output:
Water Vapor Concentration Range Frost/Dew Point Temperature Range -70°C)
±0.3°C (-70°C>FP>-100°C)
±0.6°C (-100°C>FP)

RH Systems 973 Dew Point Mirror

Measuring range:Frost/Dew Point -50…+20°C / %RH 5…100% / Temperature -50…+150°C
Accuracy:Frost/Dew point ±0.1°C / Temperature ±0.07°C
Reproducibility:Frost/Dew Point ± 0.05°C / Temperature ± 0.05°C
Operation temperature: -10…+40°C
Digital I/O: RS-232

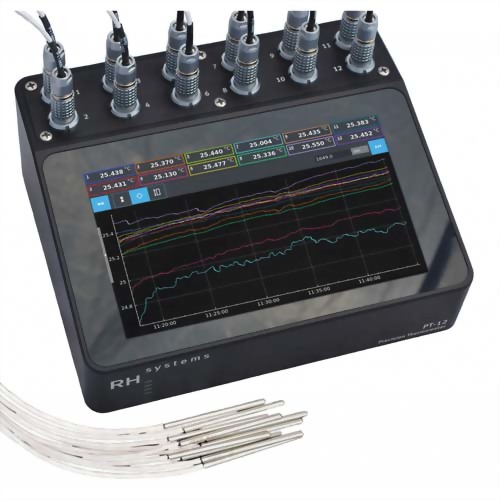

RH Systems PT-12 Precision Thermometer

Measurement Ranges:Temperature -200…+660°C / Resistance 1…380 Ω
Measurement Performance ( For the range of -200…+250°C):Resolution 0.1 mK / Accuracy : ≤ ±2 mK @ 23 °C (95% confidence level, 1 year) / Temperature coefficient : 0.1 mK / °C
Standard Features:Available inputs : 12 Channels / Input type : Pt-100 and Pt-25 Platinum Resistance Thermometer (PRT), 4-wire, Supports Smart 4-wire PRTs

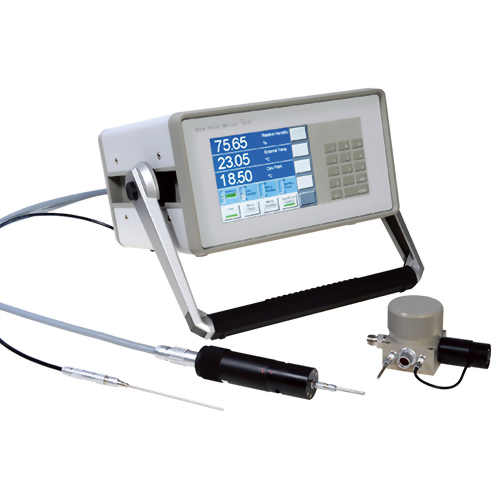

RH Systems 473 Dew Point Mirror

Measuring Ranges:Frost/Dew Point -20…70°C / Relative humidity 2…100 %rh / Temperature (head mount PRT) -20...80°C / Temperature (cable mount PRT) -50…100°C
Accuracy:Frost/Dew point ≤ ± 0.15 °C / ≤ ± 0.1 °C / Temperature ≤ ± 0.07°C
Standard Features:Temperature probe RP2: Ø3 x 30 mm PRT, 0.5 m cable / SH2 Ø2 x 100 mm PRT, 0.5 and 3 m cables
Digital I/O:RS-232

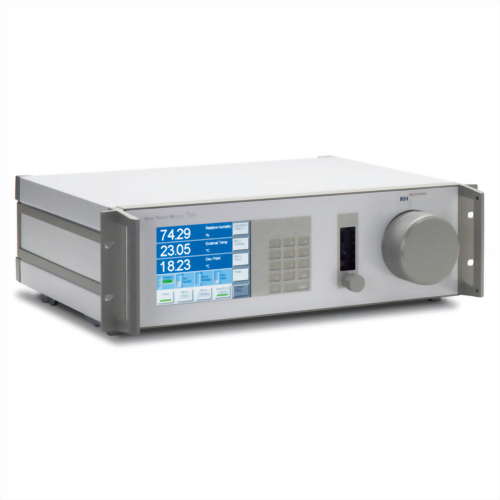

RH Systems 573 Dew Point Mirror

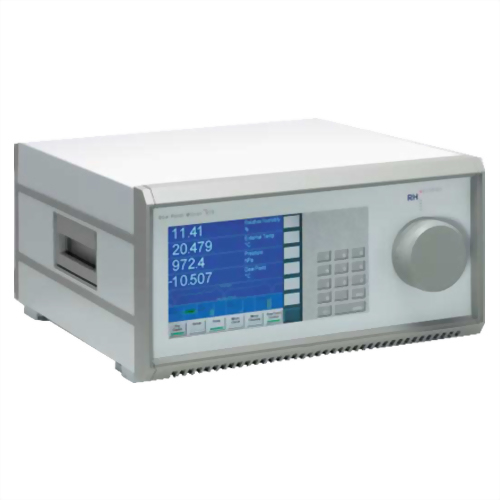

RH Systems 373 Dew Point Mirror

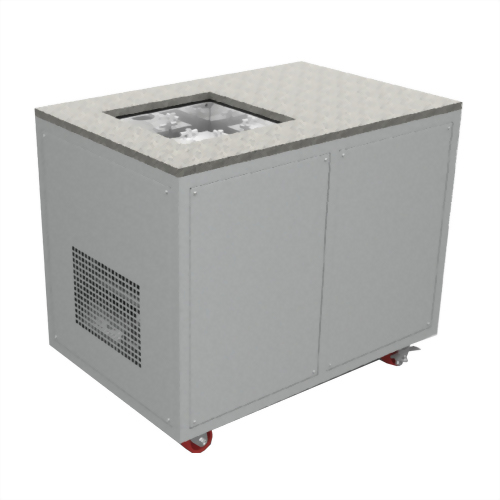

RH Systems G9 Humidity Generator

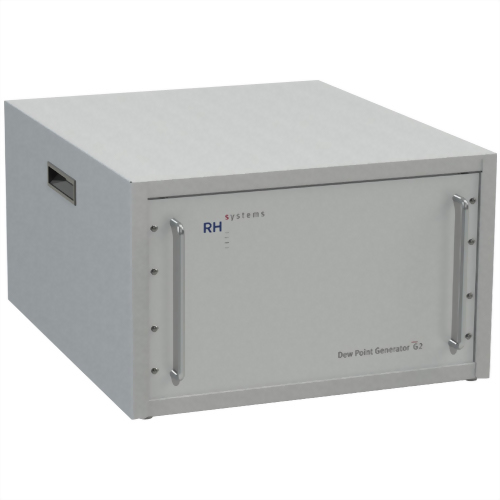

RH Systems G2 Dew Point Generator
