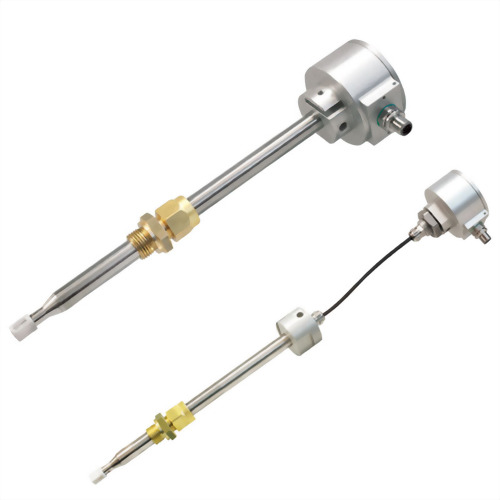

Schmidt SS 20.651 Flow Sensor

Medium :Clean air / nitrogen / other gases upon request
Measuring range : 0 ... 60 m/s
Output :0 … 10 V / 4 ... 20 mA
Operating temperature : 0 ... +350°C
Accuracy:±3% of measured value +(0.4% of final value; min. 0.08 m/s)
Operating pressure : Atmospheric / 16 bar (over pressure)
Type / class of protection:IP 65 (housing) / IP 54 (probe) / III (SELV) or PELV (EN 50178)

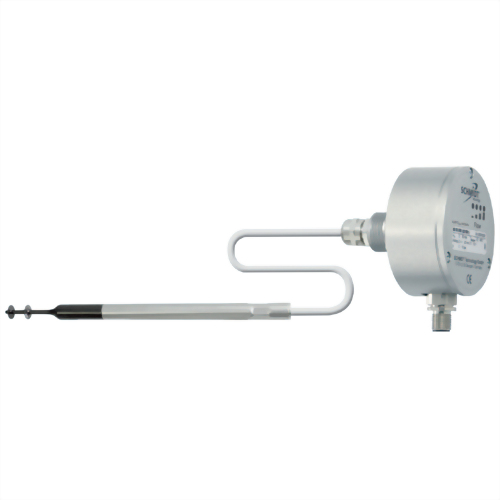

Schmidt SS 20.500 Flow Sensors

Medium :Air / nitrogen or other gases on request
Measuring range : 0 ... 50 m/s
Output :0 … 10 V / 4 ... 20 mA
Operating temperature : -40 ... +85°C
Accuracy:±(3% of measured value + [0.4% of end of measuring range; min. 0.02 m/s])
Operating pressure : Compact sensor 10 bar (overpressure) / Remote sensor atmospheric (700 hPa … 1,300 hPa)
Type / class of protection:IP67 (sensor head) / IP65 (housing) / III (SELV) or PELV

Schmidt SS 20.515 Flow Sensor

Medium :Clean air / nitrogen / additional gases on request
Measuring range : 0 ... 10 m/s
Output :0 … 10 V / 4 ... 20 mA
Operating temperature : -20 ... +70°C
Operating pressure : Atmospheric (700 … 1,300 hPa)
Type / class of protections:IP 65/III (SELV or PELV EN 50178)

Schmidt SS 23.400 Flow Sensor

Medium :Clean air / Nitrogen / Additional gases on request
Measuring range : 0 ... 20 m/s
Output :0 … 10 V / 4 ... 20 mA
Operating temperature : 0 ... +60°C
Operating pressure : Atmospheric (700 … 1,300 hPa)
Protection type / protection class:IP 66/III (SELV) or PELV (EN 50178)

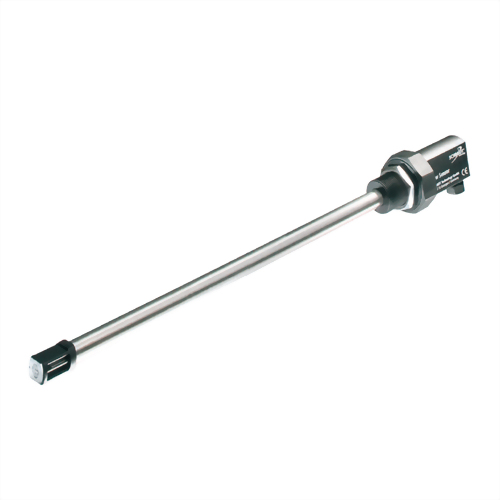

Schmidt SS 20.260 Flow Sensor

Medium:Air or nitrogen, other gases upon requeste
Measuring range : 0 ... 60 m/s
Output : 0 ... 10 V / 4 ... 20 mA
Operating temperature : -20 ... +120°C​​​
Accuracy : ±(5% of measured value + [0.4 % of final value; min. 0.02 m/s])
Operating pressure : Atmospheric (700 … 1.300 hPa)
Ingress protection/protection class:IP 65 / III or PELV

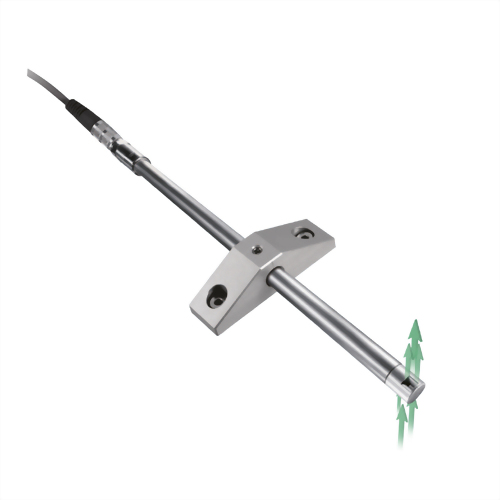

Schmidt SS 20.400 Flow Sensor

Medium :Clean air / Nitrogen / Additional gases on request
Measuring range : 0 ... 20 m/s
Output :0 … 10 V / 4 ... 20 mA
Operating temperature : 0 ... +60°C
Operating pressure : Atmospheric (700 … 1,300 hPa)
Protection type / protection class:IP 66/III (SELV) or PELV (EN 50178)

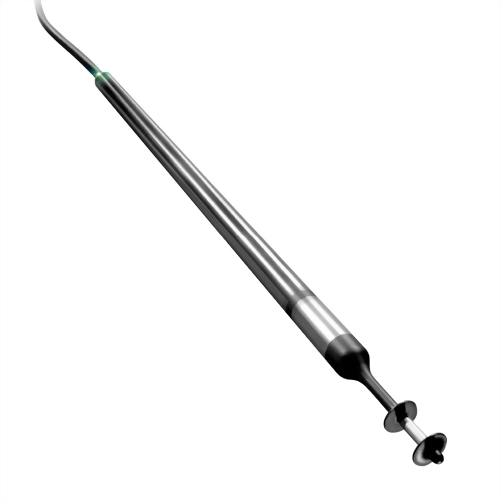

Schmidt SS 20.250 Flow Sensor

Medium:Air or nitrogen, other gases upon request
Measuring range:0 ... 1 / 10 / 20 m/s / selectable
Output:4 ... 20 mA / 0 ... 10 V
Operating temperature:-20 ... +70 °C
Accuracy:±(5% of measured value + [0.4% of final value; min. 0,02 m/s])
Operating pressure:Atmospheric (700 ... 1,300 hPa)
Ingress protection / protection class:IP 65 / III (SELV) or PELV

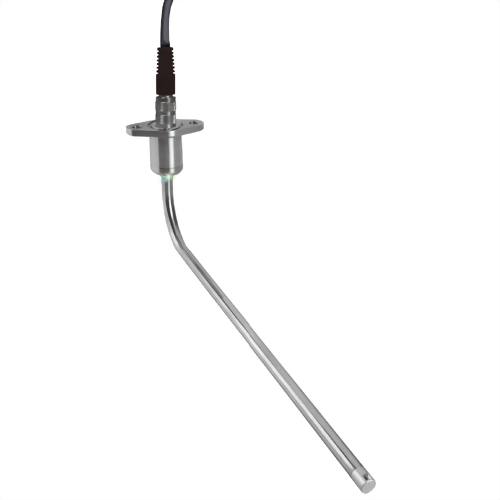

Schmidt SS 20.415 Flow Sensor

Medium :Clean air / nitrogen / additional gases on request
Measuring range : 0 ... 10 m/s
Output :0 … 10 V / 4 ... 20 mA
Operating temperature : 0 ... +60°C
Operating pressure : Atmospheric (700 … 1,300 hPa)
Type / class of protections:IP 65/III (SELV or PELV EN 50178)

Schmidt SS 20.261 Flow Sensor

Medium : Air / nitrogen / other gases upon request (flammable gases are not allowed)
Measuring range : 0 ... 90 m/s
Output :4 ... 20 mA
Operating temperature : -20 ... +85°C
Accuracy : ±5% of measured value +0.4% of measuring range
Operating pressure : 0 … 10 bar
Type of protection:IP 66 / III or PELV

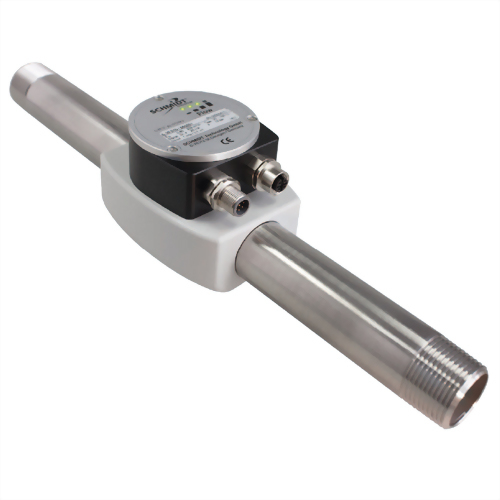

Schmidt IL30 Mass Flow Sensor

Measuring range:0 ... 712 Nm³/h
Operating temperature:-20 … +60 °C
Measuring accuracy flow:± (3 % of measured value + 0.3 % fmr)
Measuring accuracy temperature:≤ ±2 °C (at mass flow > 2 % fmr)
Output 1 (OUT 1):4 … 20 mA volume flow
Output 2 (OUT 2):4 ... 20 mA temperature of medium

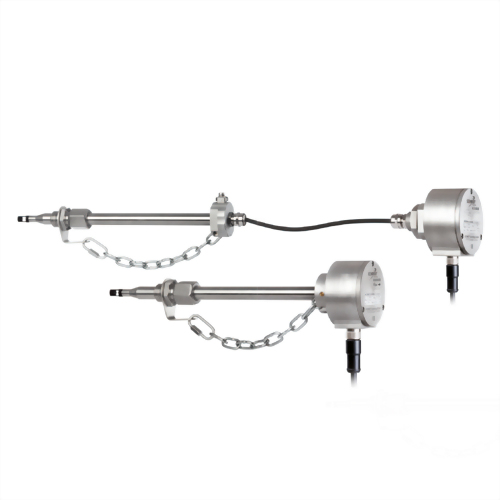

Schmidt SS 20.600 Flow Sensor

Medium :Air or nitrogen; optional: Methan, natural gas, biogas, CO2, oxygen and specialty gases and gas mixtures
Measuring range : 0 ... 220 m/s
Output :0 … 10 V / 4 ... 20 mA
Operating temperature : -20 … +120°C; SS 20.600 EX: -40 ... +120 °C
Accuracy:±3% of measured value + (0.4 % fmr; min. 0.08 m/s)
Operating pressure : 16 / 40 bar; oxygen (O2 > 21 %: 20 bar)
Type / class of protection:IP 65 (housing), IP 67 (sensor) / III (SELV) or PELV
