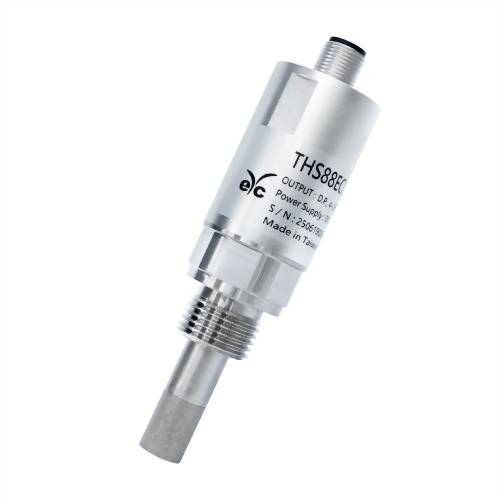

Dew point transmitter

Input : Capacitive humidity sensor & Pt100
Output : 4 ... 20 mA / 0 ... 10 V / RS-485
Range : -40°C ... +180°C
Customized up to 200°C (Optional)
0 ... 100%RH (non-condensing)
Accuracy : [Temperature]±0.15°C+0.002°C x tactual
[Humidity (0 ... 90%)]Nonlinear error：±1.2%RH, Hysteresis error：±0.8%RH, Repeatability error：±0.4%RH
[Humidity (90 ... 100%)]±2%RH
IP rating : IP67
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

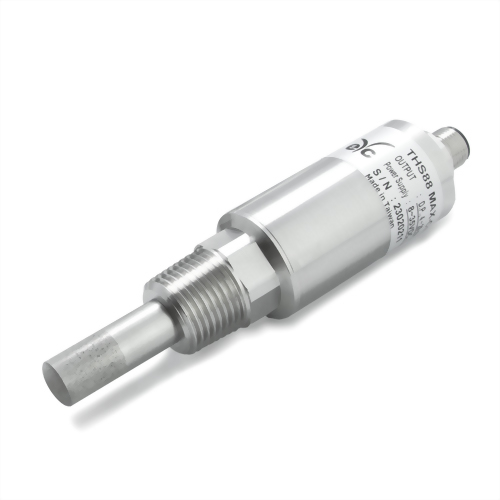

Max. scaling range : Dew point：-100 ... +60 dp°C
Linear accuracy : ±1 dp°C (at -20 ... +20 dp°C)
±1.5 dp°C(at -40 ... +20 dp°C)
±2 dp°C (at -60 dp°C)
Reference (at -100 ... -60 dp°C)
Power supply : DC 24 V±15%
Installation : 1/2’’PT, 1/2’’G, and 5/8’’UNF
IP rating : IP65(Probe：IP20)
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

Input : Industrial Multifunction Dew Point Transmitter (Duct / Remote)
Output : 4 ... 20 mA / 0 ... 20 mA / 0 ... 10 V / 0 ... 5 V / 0 ... 5 V
Linear accuracy (at +25°C) : ±0.15°C±0.002°Cxtactual / ± 3 dp°C ± (0.02% F.S. / °C)
Temp. influence of body (at +25°C) : 0.05%F.S./°C
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

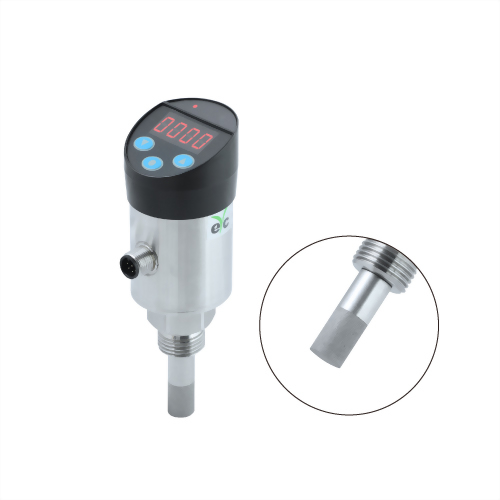

Features：Speed Upgrade 150%
Input：Capacitive humidity sensor & Pt100
Output：Standard RS-485 & 1 analog output
Linear accuracy：±2 dp°C(at +25°C)±(0.02%F.S. / °C)
Operating range of dew point：-60 ... +60 dp°C
Max. Scaling range：Dew point：-100 ... +60 dp°C
Pressure resistance：16 bar
●Additional option：( ILAC/TAF ) Test report - Standard calibration laboratory ( TAF accreditation：3032, complying with ISO/IEC 17025 )
TAF has mutual recognition arrangement with ILAC MRA

Input：Capacitive humidity sensor & Pt100
Output：Standard RS-485 & 1 analog output
Linear accuracy：±2 dp°C(at +25°C)±(0.02%F.S. / °C)
Operating range of dew point：-60 ... +60 dp°C
Max. Scaling range：Dew point：-100 ... +60 dp°C
Pressure resistance：16 bar
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA
