Huba Control

View:

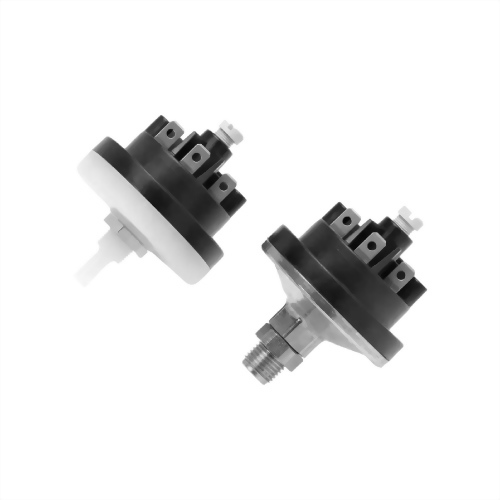

Huba 620/625 Relative pressure switch

Medium : Liquids and neutral gases
Pressure range : -4 ... -900 mbar / 2 ... 6000 mbar
Electrical connection : Screw terminals, flat connector 6.3 mm
Pressure connection :Inside thread M5, hose connector ± 6 mm, outside thread

HUBA 520 IO-Link Pressure sensor

Huba 652 Differential pressure transmitter

Medium:Liquids and gases
Pressure range:0 ... 50 – 1000 mbar
Output:0 ... 10 V, 0 ... 20 mA, 4 ... 20 mA
Accuracy:< 1.5% fs
Electrical connection:Screw terminals
Pressure connection:Inside thread

Huba 698 Differential pressure transmitter

Medium:Air and neutral gases
Pressure range:-5 ... 5 mbar / 0 ... 10000 mbar
Ausgang:0 ... 10 V, 0 ... 20 mA, 4 ... 20 mA
Accuracy:< 1.0% fs
Electrical connection:Screw terminals
Pressure connection:Hose connector conical 4 ... 7 mm or quick fitting

Huba 680 Pressure sensor

Medium : Liquids and gases
Pressure range : 0 ... 0.1 – 1000 bar
Output : 0... 5 V, 0 ... 10 V, 4 ... 20 mA
Accuracy : < 0.25% fs (< 0.05% fs on request)

Huba 630 differential pressure switch

Medium : Liquids and neutral gases
Druckbereich : 6 ... 5500 mbar
Pressure range : Screw terminals, Tab connectors 6.3 mm
Pressure connection : Inside thread

Huba 711 Level sensing pressure transmitter

Medium : Fluides
Pressure range : 0 ... 0.1 - 16 bar
Output : 4 ... 20 mA
Accuracy : < 0.3% fs

Huba 801 Digital indicating devices

Input signals : 0 ... 5 V / 0 ... 10 V / 0 ... 20 mA / 4 ... 20 mA

Huba 681 Pressure level transmitter

Medium:Fluides, aggressive fluides, potable water
Pressure range :0 ... 0.1 – 25 bar
Output :0 ... 5 V, 0 ... 10 V, 4 ... 20 mA
Accuracy :< 0.25% fs (< 0.05% fs on request)

Huba 548 pressure transmitter

Medium : Liquids and gases
Pressure range : -1 ... 0 – 40 bar
Output : 0 ... 10 V, 4 ... 20 mA
Accuracy : < 1.0% fs

Huba 511 pressure transmitter

Medium : Liquids and gases
Pressure range : -1 ... 0 – 600 bar
Output : 0 ... 5 V, 1 ... 6 V, 0 ... 10 V, 4 ... 20 mA
Accuracy : < 0.5% fs

Huba 501 Pressure transmitter

Medium : Liquids and gases
Pressure range : -1 ... 0 - 60 bar
Output : ratiom. 10% ... 90%, 0 ... 5 V, 1 ... 6 V, 0 ... 10 V, 4 ... 20 mA
Accuracy : < 0.5% fs
Electrical connection : Connector DIN EN 175301-803-A or C, M12x1, Cable 1.5 m
Pressure connection : Inside thread or outside thread
