Features

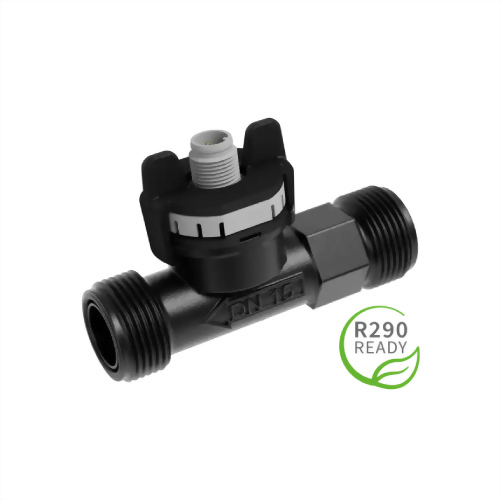

The flow sensors of Type 210 offer a wide range of configuration options for electrical power supply and output interfaces. The vortex flow sensors are maintenance-free due to their design without moving parts, making them resistant to contamination. Moreover, they are characterized by a low pressure drop and exceptionally high measurement accuracy. Optional variants with an integrated temperature sensor are available.
•Flow measurement optionally with voltage, current, pulse, or frequency output
•Excellent media resistance (measuring element without media contact)
•Optionally with integrated temperature measurement
•Temperature-insensitive measuring principle
•Large temperature operating range
•Low pressure loss
•Dirt-insensitive measuring element
•Drinking water approvals KTW, W270, ACS, WRAS, UBA 1+
R290 Ready: This sensor is VDE Mark Approved according to EN IEC 60335-2-40 and designed for safe use in heat pumps with propane (R290) - observe application limits and media compatibility according to data sheet/certificate.
•Flow measurement optionally with voltage, current, pulse, or frequency output
•Excellent media resistance (measuring element without media contact)
•Optionally with integrated temperature measurement
•Temperature-insensitive measuring principle
•Large temperature operating range
•Low pressure loss
•Dirt-insensitive measuring element
•Drinking water approvals KTW, W270, ACS, WRAS, UBA 1+
R290 Ready: This sensor is VDE Mark Approved according to EN IEC 60335-2-40 and designed for safe use in heat pumps with propane (R290) - observe application limits and media compatibility according to data sheet/certificate.
Applications
VAV systems / In-Rack CDU / Heat pumps / Ultrafiltration system / Industrial automation
Specification
| Product Feature | |
|---|---|
| Flow measurement principle |
Vortex flow rate |
| Measuring range flow rate (Overview) |
0,5 ... 150 l/min |
| Nominal width (DN) |
6; 8; 10; 15; 20; 25 |
| Accuracy (< 50% measuring range end value, water) |
<1 % FS |
| Accuracy (> 50% measuring range end value, water) |
<2 % (Measured value) |
| Switch-on delay |
<100 ms (Immediate response time; can be used for tapping operation) |
| Response time |
5 ... 500 ms |
| Switch-on delay (seconds) |
<2 s |
| Sensor weight |
44; 46; 57; 68; 92; 100 g |
| Temperature measuring principle |
PT1000 (Class B DIN EN 60751) |
| Temperature measuring range |
-40 ... 125 °C |
| Repeatability |
±0,5% |
| Sensor type |
Flow sensor, optionally with temperature measurement |
| Field of Application | |
| Media |
Heating water with standard additives; Drinking water; Other media on request |
| Medium temperature |
-15 ... 125 °C (Non-freezing media) |
| Maximum test pressure (at 40 °C medium temperature) |
18 bar |
| Cavitation |
>5,5 (Equation to avoid cavitation: P abs outlet / P difference) |
| Maximum system pressure (medium temperature up to 90 °C) |
7 bar |
| Maximum pressure impact resistance (at 90 °C medium temperature) |
on request |
| Recommended minimum system pressure |
1 bar |
| Ambient Condition | |
| Ambient temperature |
-15 ... 85 °C |
| Storage temperature |
-30 ... 85 °C |
| Material | |
| Sensor paddle (with media contact) |
ETFE |
| Housing (with media contact) |
PA6T/6I (40 % glass fibre) |
| Sealing material (with media contact) |
FKM; EPDM (perox.) |
| Electrical Data | |
| Electrical connection |
M12x1 connector |
| IP protection class |
IP 65 |
| Supply voltage |
4,75 ... 33 VDC |
| Output flow rate |
0 ... 10 V; 4 ... 20 mA |
| Temperature output |
0 ... 10 V; 4 ... 20 mA; PT1000 |
| Current consumption |
<5 mA |
| Inverse-polarity protection |
Short-circuit and reverse polarity protected. Each connection against each other with max. supply voltage. |
| Approval | |
| EMC compatibility |
CE-compliant in accordance with EN 61326-2-3 |
| Drinking water |
Plastic parts with KTW and W270 approval; WRAS; ACS |
| Temperature Measurement | |
| Influence (self-heating temperature sensor) |
1 K/mW |
| Influence (conduction resistance to connector) |
0,8 Ohm |
Download
Note : Design and specifications are subject to change without notice.
Note : Please make sure the product and the device which connect with RS-485 are on common ground, avoid damaged product.
