HONSBERG

Flow monitor FW1..GM

Switch:reed switch
Process connection:FW1-..GM - female thread G 1/4..G 1 / FW1-..GP - female thread G 1/2
Switching range:FW1-..GM - 1..11 l/min / FW1-..GP - Up to 6 l/min
Pressure loss: 0.2..0.8 bar at Qmax.
Pressure resistance:FW1-..GM - PN 100 bar optionally up to PN 800 bar / FW1-..GP - PN 10 bar
Media temperature:-20..+90°C
Protection class:2 - safety insulation
Ingress protection:IP 67

Honsberg UM3K- ... G/A Flow Switch

Nominal width: DN 10..50
Process connection: female thread G 3/8..G 1
Switching range: 4..93 l/min
Pressure rating: PN 25 bar
Medium temperature: -20..+110 °C

HONSBERG Flow Switch MR1K

Switch:reed switch
Switching range:0.4..60 l/min
Qmax.:to 80 l/min
Pressure resistance:PN 200 bar optionally PN 500 bar
Media temperature:-20..+120 ℃ optionally -20..+150 °C
Ingress protection:IP 65

HONSBERG RRI Flow transmitter

Sensor:inductive
Mechanical Connection:female thread G 3/8, G 1 / male thread G 3/8 A, G 1 A / hose nozzle Ø11, Ø30
Pressure resistance:PN 16 bar
Medium temperature:0..60 °C
Ingress protection:IP 67

HONSBERG Flow Transmitter VHZ

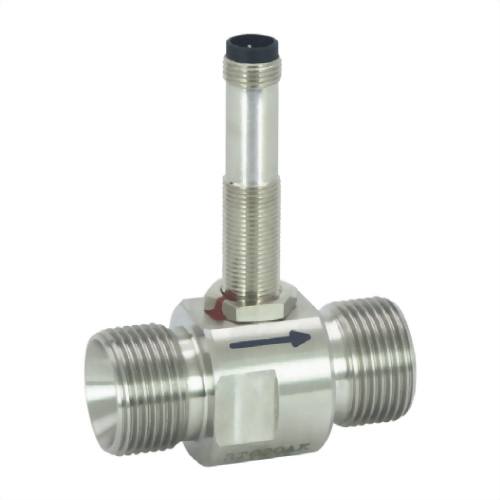

HONSBERG RT Flow transmitter

Sensor:biased Hall sensor
Nominal width:DN 15..50
Process connection:male thread G 1/2 A...G 2 A
Metering ranges:1.8..1133 l/min
Measurement accuracy:±1 % of full scale value
Medium temperature:-20..+85 °C / optionally -20..+150 °C (for 8 bar min.)
Ambient temperature:-20..+70 °C

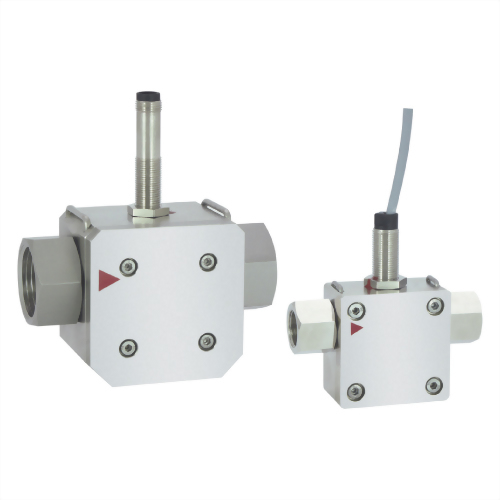

HONSBERG Flow Transmitter

HONSBERG OMNI-T Temperature transmitter
