Temperature transmitter
Temperature transmitter, we also provides a series of products with RTD Head-Mounting type, thermocouples, and thermal resistors(RTD/TC Series), meeting diverse industrial requirements.
RH Systems PT-12 Precision Thermometer
Measurement Ranges：Temperature -200…+660°C / Resistance 1…380 Ω
Measurement Performance ( For the range of -200…+250°C)：Resolution 0.1 mK / Accuracy : ≤ ±2 mK @ 23 °C (95% confidence level, 1 year) / Temperature coefficient : 0.1 mK / °C
Standard Features：Available inputs : 12 Channels / Input type : Pt-100 and Pt-25 Platinum Resistance Thermometer (PRT), 4-wire, Supports Smart 4-wire PRTs
Measurement Performance ( For the range of -200…+250°C)：Resolution 0.1 mK / Accuracy : ≤ ±2 mK @ 23 °C (95% confidence level, 1 year) / Temperature coefficient : 0.1 mK / °C
Standard Features：Available inputs : 12 Channels / Input type : Pt-100 and Pt-25 Platinum Resistance Thermometer (PRT), 4-wire, Supports Smart 4-wire PRTs

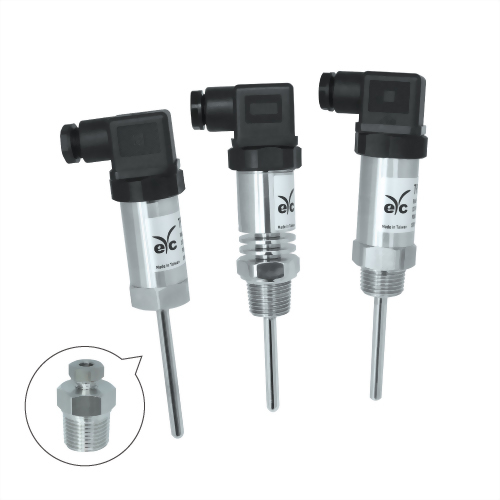

eyc-tech TP04 2-wire Temperature Transmitter for Duct Type
Features : Suitable for industrial application. Integrated design combines PT100Ω and transmitter. Easy installation.
Sensor type : RTD Pt100
Measuring range : 0 ... 100°C
Output : DC 4 ... 20 mA(2-wire)
Accuracy : ±0.5% F.S.
IP rating : IP65
MOQ : 10 PCS/lot
Sensor type : RTD Pt100
Measuring range : 0 ... 100°C
Output : DC 4 ... 20 mA(2-wire)
Accuracy : ±0.5% F.S.
IP rating : IP65
MOQ : 10 PCS/lot

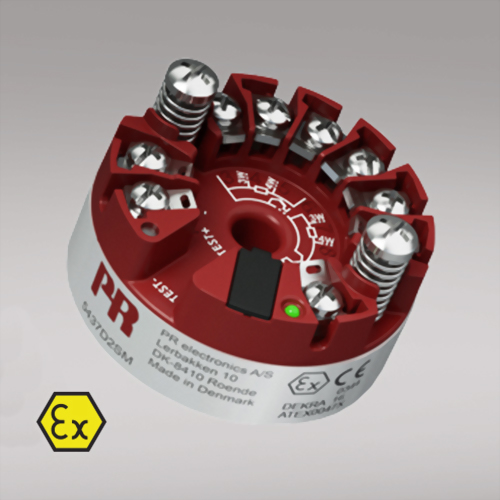

PR 5437D 2-wire HART 7 temperature transmitter
Input：RTD / TC / Potentiometer / Ohm / mV
Output：3.8...20.5 / 20.5...3.8 mA
Operating temperature：-50°C ... +85°C
Accuracy：< ±0.1% of span
Protection degree (encl./terminal)：IP68 / IP00
Output：3.8...20.5 / 20.5...3.8 mA
Operating temperature：-50°C ... +85°C
Accuracy：< ±0.1% of span
Protection degree (encl./terminal)：IP68 / IP00
eyc-tech TP01 Temperature Transmitter (2-Wire RTD Head-Mounting Type)
Features : Cost effective. ZERO / SPAN adjustment.
Sensor type : RTD Pt100(3-wire)
Measuring range : -50 ... 400°C
Output : DC 4 ... 20 mA(2-wire)
Accuracy : ±0.1% F.S.
IP rating : IP30(Housing) / IP10(Terminal)
Sensor type : RTD Pt100(3-wire)
Measuring range : -50 ... 400°C
Output : DC 4 ... 20 mA(2-wire)
Accuracy : ±0.1% F.S.
IP rating : IP30(Housing) / IP10(Terminal)

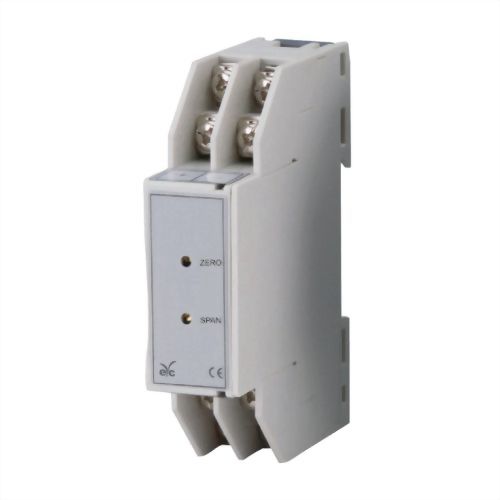

eyc-tech TP02 Temperature Transmitter for DIN-rail Type
Features : Compact size. Easy to install. Cost effective.
Sensor type : RTD Pt100(3-wire)
Measuring range : -50 ... 200°C
Output : DC 4 ... 20 mA(2-wire)
Accuracy : ±0.1% F.S.
IP rating : IP30(Housing) / IP10(Terminal)
Sensor type : RTD Pt100(3-wire)
Measuring range : -50 ... 200°C
Output : DC 4 ... 20 mA(2-wire)
Accuracy : ±0.1% F.S.
IP rating : IP30(Housing) / IP10(Terminal)
