Features
● Rugged aluminum alloy housing for harsh environments
● Temperature range configurable via RS-485
● M12 waterproof quick connector; compatible with SD05 display
● RS-485 configuration software enables setting of measurement range, analog output, and device address
● Built-in data logging supports up to 65,535 records with graphical analysis
● Measures temperature of various media, including air and liquid
● Temperature range configurable via RS-485
● M12 waterproof quick connector; compatible with SD05 display
● RS-485 configuration software enables setting of measurement range, analog output, and device address
● Built-in data logging supports up to 65,535 records with graphical analysis
● Measures temperature of various media, including air and liquid
Applications
Semiconductor / Electronics / Chemical / Pharmaceutical / Steel industry / Biotechnology / Industrial / process monitoring / Air conditioning / Cleanroom / Laboratory / Weather station / Hospital / Buildings / Dryers / Factories / Storage rooms / Environmental ventilation control / Environmental test chambers / Greenhouses
Specification
Input |
|
Input |
Pt100 Ω Class A |
Measuring range |
-40 ... +200°C |
Output |
|
Output |
4 ... 20 mA / RS-485 |
Load resistance |
Current output：≦500 Ω |
Response time (at +25°C) |
t90 ＜3 sec |
Filter response |
0 ... 100 adjustable |
Sampling time |
1 cycle/sec |
Accuracy (at +25 °C) |
|
Accuracy |
±0.1°C |
Temperature drift |
＜±0.02% F.S. / °C |
Communication |
|
Comm. Interface & Protocol |
RS-485 Modbus RTU |
RS-485 Baud Rate |
9600、19200、38400、57600、115200 bps |
Electrical |
|
Power supply |
DC 24 V ±10% |
Current consumption |
24 V：40 mA |
Electrical connector |
M12 5P connector |
Environmental |
|
Medium |
Air / liquid |
Operating Temp. |
-20 ... +60°C |
Operating Humid. |
0 ... 90% (Non-condensing) |
Storage temperature |
-25 ... +60°C |
Probe pressure resistance |
16 bar |
Installation |
|
Installation |

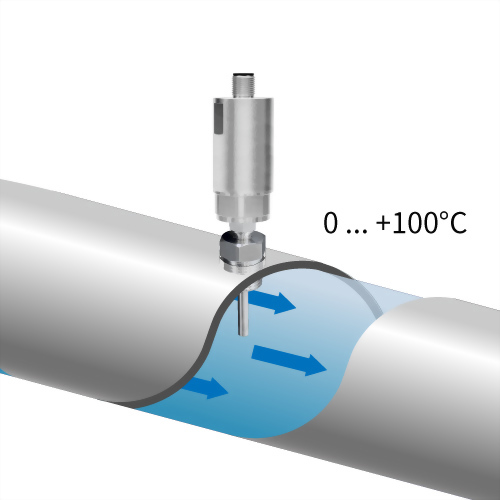

1/4″PT or 1/2″PT movable thread |
Certification |
|
Certification |
CE |
Protection |
|
IP rating |
IP65 |
Electrical protection |
■ Reverse polarity ■ Over-voltage |
Material |
|
Housing |
Aluminum alloy |
Probe |
Stainless steel |
Weight |
About 180g |
Download
Note : Design and specifications are subject to change without notice.
Note : Please make sure the product and the device which connect with RS-485 are on common ground, avoid damaged product.
