Calibration Service

IEC 17025 Calibration Laboratory

YUDEN-tech possesses an ISO/IEC 17025 accredited third-party calibration laboratory that conducts calibrations for temperature, humidity, dew point, air velocity, flow, and pressure in accordance with laboratory quality guidelines.
By adhering to international standards, we ensure the design accuracy of every eyc-tech products, meeting the elevated standards of our customers.。

IEC17025 calibration laboratory
IEC 17025 cartification

YUDEN-TECH CO., LTD Calibration Laboratory | ilac-MRA, TAF (ISO/IEC 17025) Certification (Certification number: 3032)

It provides accurate calibration services through TAF on behalf of Internationally recognized grade standards and can be traced back to the SI unit.

ilac-MRA, TAF (ISO/IEC 17025) Certification (Certification number: 3032)

Accredited capabilities list

Project Scope of Accreditation

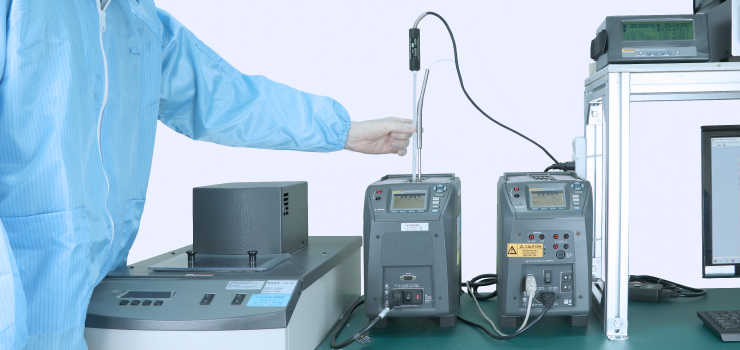

Resistance thermometer
-40°C ... +300°C

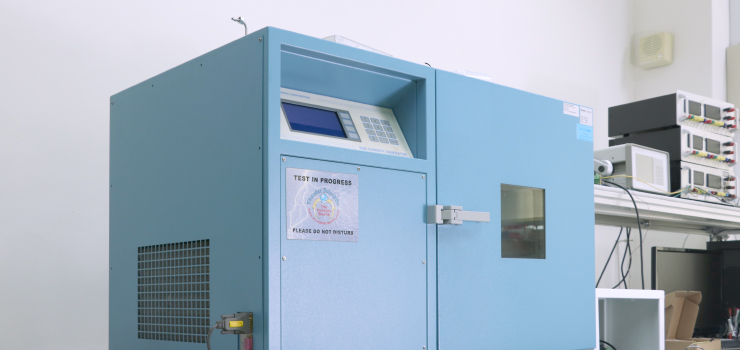

Hygrometer
Temperature:0°C ... 69.5°C
Humidity:10% ... 95%

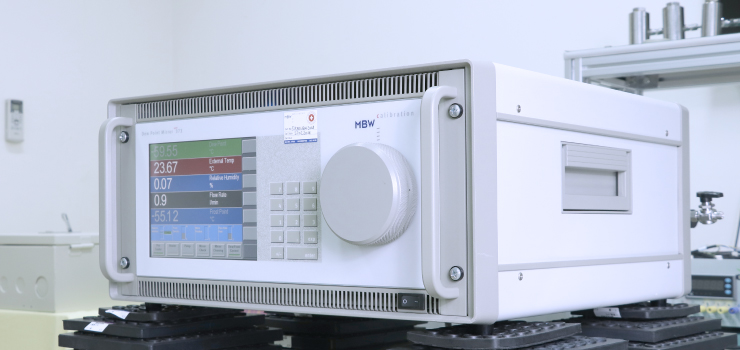

Dew point transmitter
≧-80°C ... ≦60°C

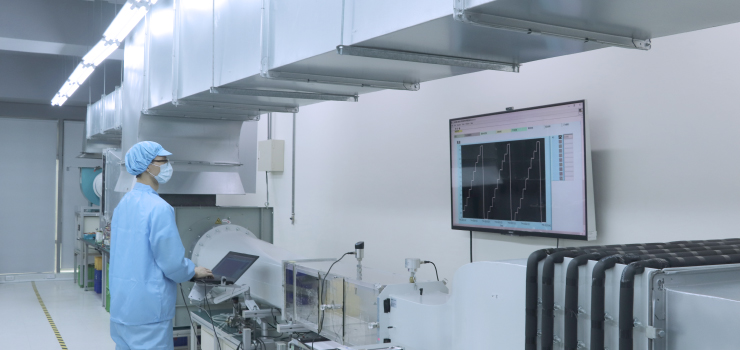

Air velocity transmitter
0.2 m/s ... 60 m/s

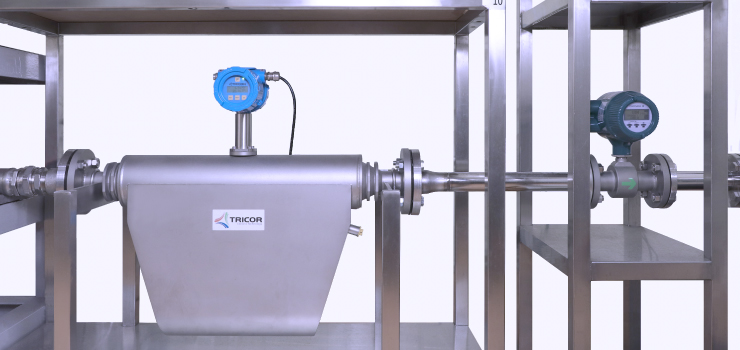

Flow transmitter
Water flow rate:2.54 m³/h ... 30 m³/h (42.3 L/min ... 500.0 L/min)
Water flow velocity:0.2 m/s ... 3 m/s

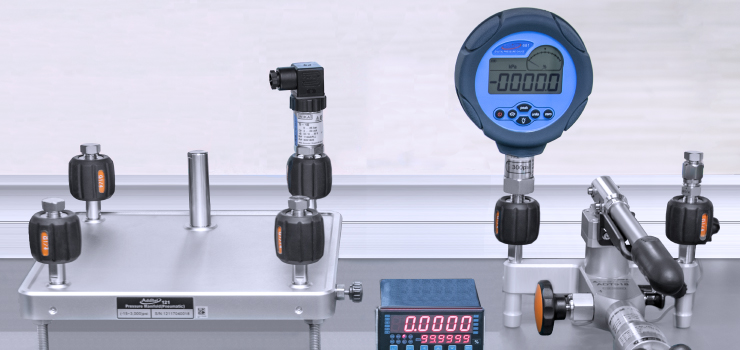

Pressure transmitter
Relative pressure:10 kPa ... 7000 kPa
Absolute pressure:20 kPa ... 170 kPa

*The instrumentation above, the non-eyc-tech products must be accompanied by the operating instructions or user manual.

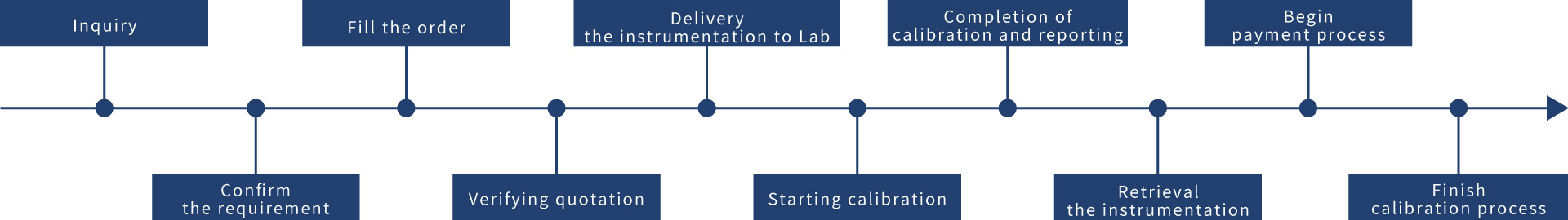

Calibration service process

Calibration service process

Calibration System
