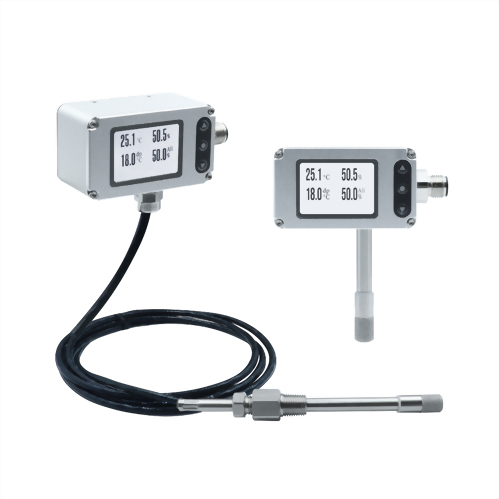

Temperature & Humidity transmitter

Input : Capacitive humidity sensor & Pt100
Output : 4 ... 20 mA / 0 ... 10 V / RS-485
Range : -40°C ... +180°C
Customized up to 200°C (Optional)
0 ... 100%RH (non-condensing)
Accuracy : [Temperature]±0.15°C+0.002°C x tactual
[Humidity (0 ... 90%)]Nonlinear error：±1.2%RH, Hysteresis error：±0.8%RH, Repeatability error：±0.4%RH
[Humidity (90 ... 100%)]±2%RH
IP rating : IP67
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

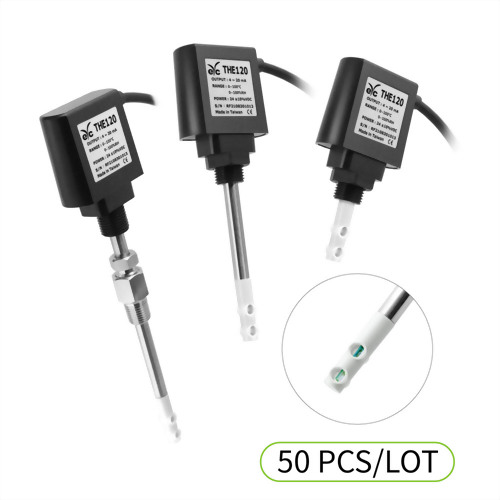

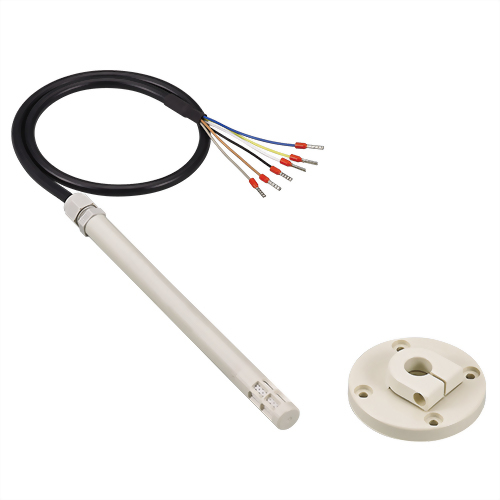

OEM Product : 50 PCS/LOT
Measuring range : 0 ... 100°C / 0 ... 100%RH
Output : 4 ... 20 mA / 0 ... 10 V / RS-485​
Accuracy : ±0.2°C (Temperature) / ±2%RH (Humidity)
Power supply : DC 24 V ±10%​
IP rating : IP 65​
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

Feature : Stable & Accurate Performance in Explosion Hazardous Areas
Input : Capacitive Humidity Sensor & Pt 1000
Output : 4 ... 20 mA
Range : -20 ... +80°C ; 0 ... 100 %RH
Accuracy : ±0.3°C ; ±2% RH
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

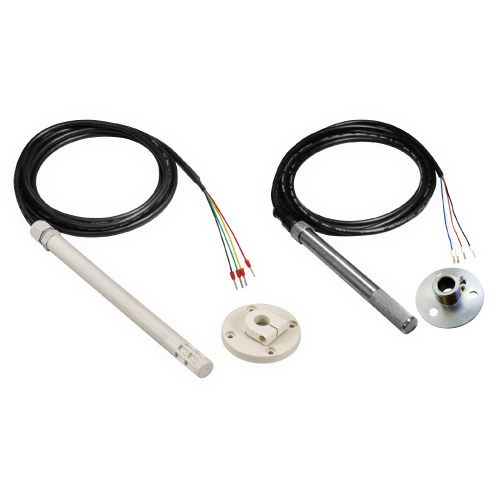

Feature : Industrial class sensor comes with high accuracy and long-term stability
Input : Capacitive Humidity Sensor & Pt100
Output : Temperature RTD(Pt100 / NTC10K);Humidity 0 ... 10 V；4 ... 20 mA
Accuracy : Temperature ±0.3°C+ 0.002°Cx tactual / Humidity(at +25°C) ±3%RH(30 ... 70%RH) of F.S. /
Humidity(at +15 ... 35°C) ±5%RH(20 ... 80%RH) of F.S.
Measuring range : Temperature 0 ... 50°C；Humidity 5 ... 95%RH
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

MOQ：50 PCS/YEAR
Feature : Semiconductor MEMS sensor, has nicer long-term stability of measuring and react quickly feature
Output : Digital / Analog / RS-485 ; 4...20mA (2-wire) ; 0...10V(3-wire)
Range : 0 ... 50 °C ; 0 ... 100 %RH(non-cond.)
Accuracy : ± 0.5 °C ; ± 5 %RH
Nice Stability : Non-cond. : Sensor Protected
Housing : SUS304 or PC Fire-proof
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

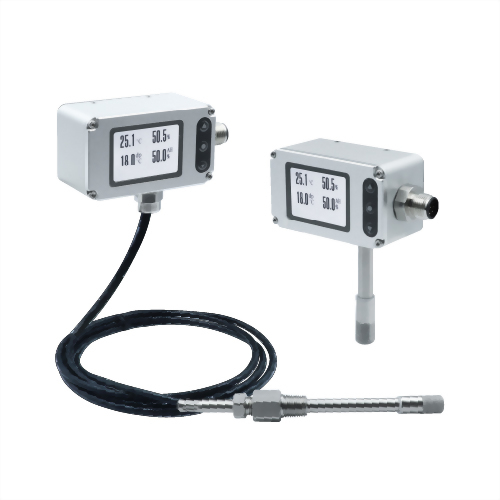

Input：Capacitive Humidity Sensor & Pt100 Ω A class
Output：0 ... 20 mA / 4 ... 20 mA / 0 ... 1 V / 0 ... 5 V / 0 ... 10 V
Measuring range：
THM801：-40 ... +80°C / THM802：-40 ... +120°C / THM803：-40 ... +200°C(as request) ; 0 ... 100%RH；-40 ... +60dp°C
Accuracy(at+25°C)：
Temperature : ±0.15°C±0.002°Cxtactual
Humidity ( 0 ... 90 %RH ) : Nonlinear error：±1.2%RH / Hysteresis error：±0.8%RH / Repeatability error：±0.4%RH
Humidity ( 90 ... 100 %RH) : ±2%RH
IP65
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

Features：Industrial sensor comes with high accuracy and long-term stability
Input：Capacitive humidity sensor & Pt 100 class A
Output：RS-485 or 2 analog output / 4 ... 20 mA / 0 ... 10 V
Linear accuracy(at 25°C)：Temperature ±0.2°C±0.005°Cxtactual / Humidity (at+25°C)±2%RH
Operating range suggestion：Temperature 0 ... 50°C(THS301)；- 40 ... + 80°C(THS302 / 304 / 307) / Humidity 0 ... 100%RH
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

Input sensor type：MEMS
Output：0 ... 10 V / 4 ... 20 mA / RS-485
Accuracy(at+25°C；DC 24 V)：±0.5°C / ±5%RH(30 ... 80%RH)
Measuring range：0 ... 50°C / 0 ... 100%RH(Non-condensing)
Interface：RS-485+analog
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

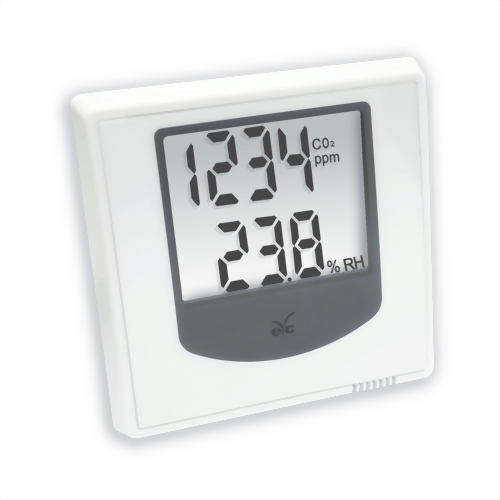

Input：CO2 NDIR sensor / Temp. & humidity MEMS sensor
Output：0 ... 10 V / 4 ... 20 mA
Accuracy(at +25°C；DC 24 V；101.3 kPa)：
CO2±40 PPM±3% of reading / Temperature±0.5°C / Humidity±5%RH(30 ... 80% RH)
Measuring range：0 ... 2000 PPM / 0 ... 50℃ / 0 ... 100%RH(Non-condensing)
●YUDEN-TECH CO.,LTD. Calibration Laboratory - ( ILAC / TAF ) Test report, for more detailed information please contact us.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA

Features : Real-Time Data of PM2.5, CO2, temperature & humidity. / Anti-condensation and nicer long-term stability.
Input : Temp.&Humidity MEMS / CO2 : NDIR / PM2.5: Infrared LED
Output : RS-485
Accuracy : ± 0.5 ℃ / ± 5 %RH ( at 30 ... 80 %RH ) /
CO2 ± 40 PPM ± 3 % of Reading / PM2.5 ± 10 μg/m3 ± 5% of Reading
Measuring Range : Temp.: 0 ... 50 ℃ / Humidity :0 ... 100 %RH ( non-cond. ) /
CO2: 0 ... 2000 PPM / PM2.5: 0 ... 500 μg/m3
