Features
● Compact design, good look and easy to install.
● An economical choice, high C / P ratio.
● High-Tech sensor component with high accuracy and long-term stability.
Applications
Monitoring for HVAC process / Air conditioning / Environmental ventilation control / Environmental monitoring for building / Factory / Clean room / Lab. / Monitoring for storeroom / Crisper / Agriculture / Food industry
Specification
Input |
|
Sensor type |
Capacitive humidity sensor & Pt1000 |
Measuring range |
|
Temperature |
0 ... 50°C |
Humidity |
0 ... 100 %RH(Non-condensing) |
Output |
|
Output |
4 ... 20 mA |
Signal connection |
2-wire |
Warm-up time |
＜2 m, Stable time 20 min |
Response time |
t63(15°C ... 45°C / 33 ... 75%RH)≦ 10 sec |
Sampling time |
About 3 sec |
Temperature influence |
0.2%RH / °C |
Load resistance |
2-wire current :＜(V-10) / 0.02＜500 Ω |
Output calibration(ZERO &SPAN) adjustment range |
10% of zero-point and full-range |
Accuracy(at 25°C) |
|
Temperature |
0.3°C+0.002°C x tactual |
Humidity |
±3%RH(30 ... 80%RH) |
Electrical |
|
Power supply |
DC 11 ... 35 V |
Current consumption |
DC：41 mA |
Electrical connection |
3P connection |
Environment |
|
Medium |
Air |
Operating Temp. |
0 ... + 50°C |
Storage Temp. |
-25 ... +60°C |
Installation |
|
Installation |

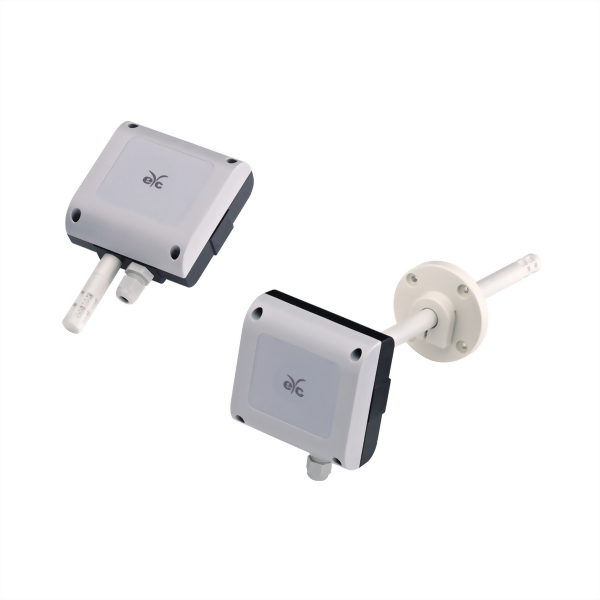

Wall type / Duct type |
Protection |
|
IP rating |
IP54(Sensor：IP20) |
Electrical protection |
■ Reverse polarity |
Certification |
|
Certification |
CE |
Material |
|
Housing |
PC fire-proof class(PC-110)(UL94V-2) |
Weight |
THS132 : 132 g |
Download
Note : Design and specifications are subject to change without notice.
Note : Please make sure the product and the device which connect with RS-485 are on common ground, avoid damaged product.
