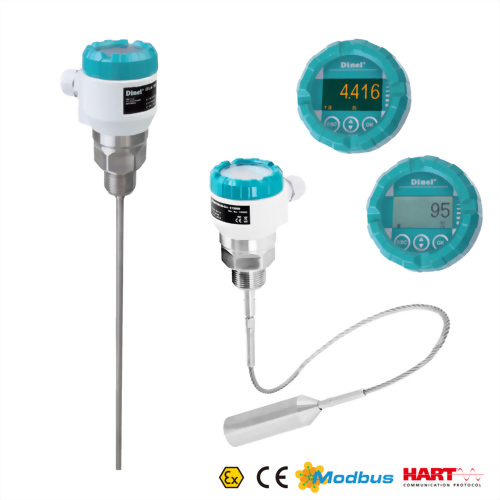

Dinel GRLM-70 Radar Level Meters

Measuring range:0.5 ... 40 m
Output:4 ... 20 mA s HART® / linka RS-485 / Modbus RTU
Accuracy:± 2 mm
Supply voltage:DC 18 ... 36 V / DC 18 ... 30 V / DC 18 ... 33 V
Ambient temperature range:-30 ... +70°C
Protection class:IP67

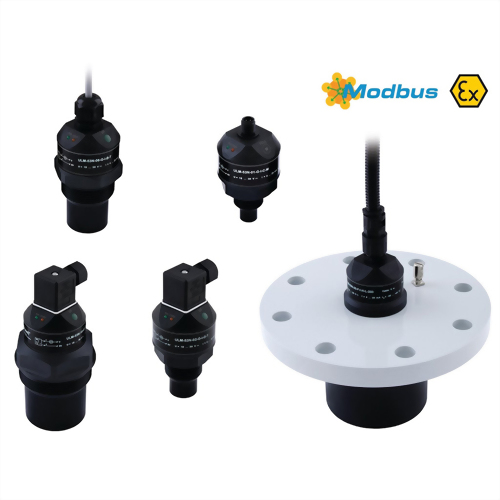

Dinel ULM-53 Ultrasonic Level Meters

Measuring range:0.1 ... 20 m
Output:4 ... 20 mA / 0 ... 10 V / RS-485
Accuracy:0.3% / 0.2% / 0.15%
Supply voltage:DC 18 ... 36 V / DC 18 ... 30 V
Ambient temperature range:-30 ... +70°C
Protection class:IP67 / IP68

Dinel HLM-35 Hydrostatic Level Meters

Working environment:no explosive hazard area
Supply voltage:12 ... 34 V DC / 12 ... 34 V DC
Output:4 ... 20 mA / 0 ... 10 V
Operating temperature range:-20 ... +70 °C
Protection class:IP67 / IP68

Dinel HLM-25S Hydrostatic Level Meter

Output:4 ... 20 mA / 0 ... 10 V
Supply voltage:12 ... 36 V DC / 16 ... 36 V DC
Ambient temperature range:-20 ... +70 °C
Accuracy:Typ. 0.5% of range / Max. 0.7% of range
Protection class:IP68

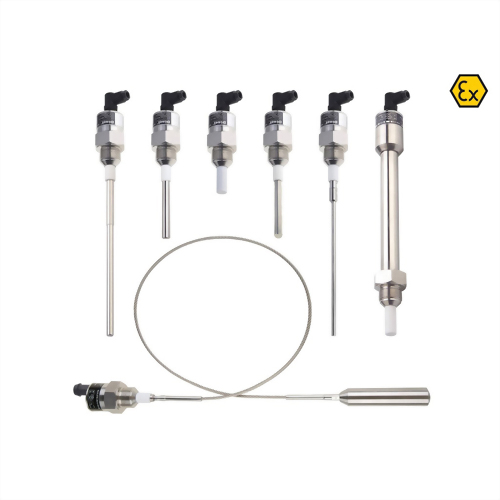

Dinel DLS-27 Capacitive Level Sensors

Output : NPN / PNP / NAMUR
Supply voltage : 7 ... 36 V DC / 7 ... 33 V DC
Current supply (state OFF / ON) : 3 / 10 mA
Max. switching current (NPN, PNP) : 200 mA
Temperature and pressure resistivity:-40°C ... +300°C / 0.1 ... 3 MPa
Protection class:IP67

Dinel DLM-35 Capacitive Level Meters

Output : 4 ... 20 mA (2-wire) / 0 ... 10 V (3-wire)
Supply voltage:9 ... 34 V DC / 12 ... 34 V DC
Ambient temperature range:-40 ... +85 °C
Pressure resistivity:0.1 ... 5 MPa
Protection:IP67 / IP68

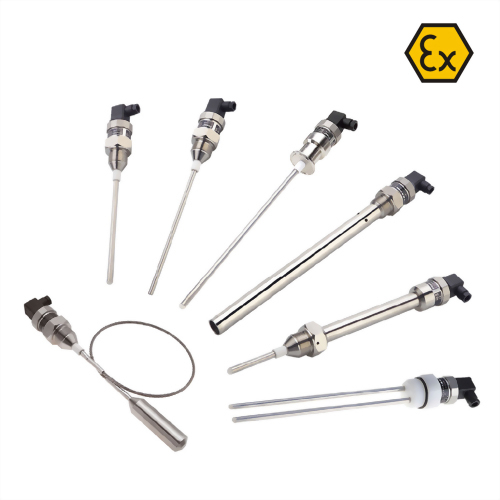

Dinel CLM-36 Capacitive Level Meters

Output:4 ... 20 mA / 0 ... 10 V
Supply voltage:9 ... 36 V DC / 16 ... 36 V DC
Temperature durability:-40°C ... +300°C
Pressure durability:0.1 ... 7 MPa
Protection class:IP67 (Housing), IP65 (Connector) IP67

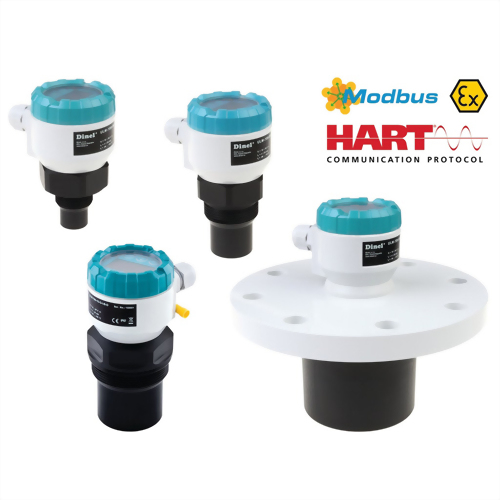

Dinel ULM-70 Ultrasonic Level Meters

Measuring range:0.15 ... 20 m
Output:4 ... 20 mA / HART® / RS-485 with protocol Modbus RTU
Accuracy:0.15%
Supply voltage:DC 18 ... 36 V / DC 18 ... 30 V
Ambient temperature range:-30 ... +70°C
Protection class:IP67

Dinel CPS-24 Capacitive Proximity Switch

Output : NPN / PNP / NAMUR
Supply voltage : DC 7...36 V
Current supply (state OFF / ON) : 3/6 mA
Switching current (NPN, PNP output) : 200 mA
Ambient temperature range:-20 ... +70°C
Protection class:IP67
