Höntzsch ZS25 Vane wheel flow sensor

MEDIA:gases / liquids
MEASURING RANGE:0.4 ... 120 m/s in air/gases / 0.04 ... 10 m/s in water/liquids
PRESSURE RESISTANCE:up to 10 bar / 1 MPa overpressure
MEDIA TEMPERATURE:-40 ... +550 °C
DISPLAYED INDICATORS:flow velocity, flow rate, volume
IP PROTECTION TYPE:IP65 (connection housing)

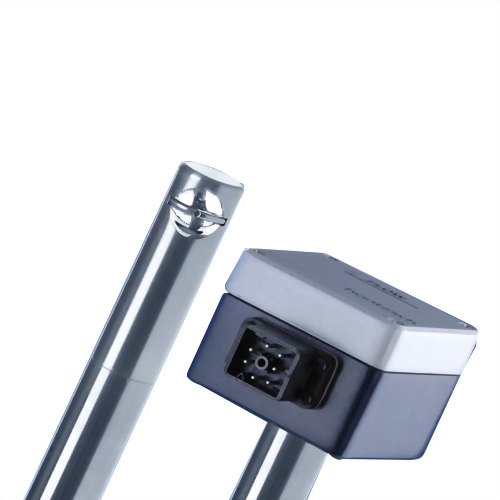

Höntzsch ZS30 Vane wheel flow sensor

MEDIA:gases / liquids
MEASURING RANGE:0.3 ... 3 m/s in gases / 0.03 ... 3 m/s in liquids
PRESSURE RESISTANCE:up to 6 bar / 600 kPa overpressure
MEDIA TEMPERATURE:-40 ... +350 °C
DISPLAYED INDICATORS:flow velocity / flow rate / volume
IP PROTECTION TYPE:IP65 (connection housing)

Höntzsch ZS(R)25, ZS25/27, ZS(R)30, FT25, FT30 Extendable vane wheel flow sensors

MEDIA:gases / liquids
MEASURING RANGE:0.4 ... 120 m/s in air/gases / 0.04 ... 10 m/s in water/liquids
PRESSURE RESISTANCE:up to 6 bar / 600 kPa overpressure
MEDIA TEMPERATURE:-40 ... +260 °C
IP PROTECTION TYPE:IP65 (cable side)

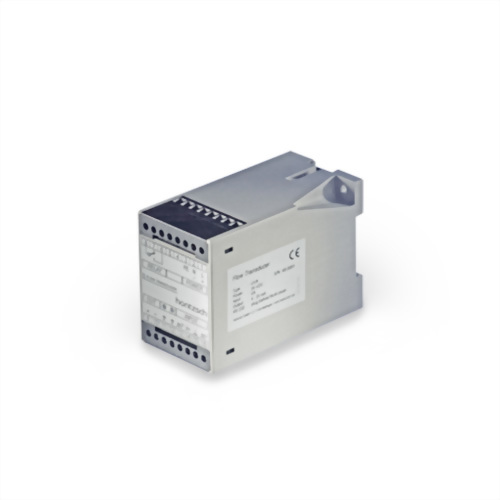

Höntzsch UFA Transducer UFA

SENSOR INPUT:v/FA / v/FAR
SENSOR OUTPUT:analog output flow 4 ... 20 mA or 0 ... 10 V flow-proportional, relay for limit value, quantity pulse or indication of +/- flow direction, RS232 interface
IP PROTECTION TYPE:IP20

Höntzsch Vortex Probeufa VA40…ZG10

MEDIA:gases
DISPLAYED INDICATORS:flow velocity / flow rate / volume
MEASURING RANGE:0.5 ... 40 m/s
SENSOR OUTPUT:analog output 4-20 mA / limit value / quantity pulse / RS232 interface
PRESSURE RESISTANCE:up to 3 bar / 300 kPa overpressure
MEDIA TEMPERATURE:-40 / -20 / 0 ... +100 °C
IP PROTECTION TYPE:IP65 (connection housing)

Höntzsch Flowtherm Ex Multifunctional Handheld Flow Transmitter

SENSOR INPUT:FA / FT / FAR / VA / VAT / TA / TAT / Pt100 / analog input 4 - 20 mA or 0 - 10 V
DISPLAYED INDICATORS:actual flow velocity [m/s], [ft/min] / actual flow rate [m³/h], ... / standard flow velocity [N-m/s], ... / standard flow rate [N-m³/h], ... / mass flow [kg/h] / temperature [°C], [K]
Working temperature range:-10 °C ... +50 °C
Type of protection:IP65
