Air Velocity Standard Calibration Laboratory

Air Velocity Standard Calibration Laboratory

ILAC|TAF (ISO/IEC 17025) Accredited No. 3032




■ Features

● Air velocity:0.2 m/s . . . 60 m/s;Smallest Uncertainty:0.08 m/s ... 0.85 m/s
● Low uncertainty, quickly repeat testing, suitable for calibration of the air velocity transmitter

■ Air Velocity Calibration Condition

● Type
Insert type
Outer:φ16 mm or less
Depth:At least 160 mm (Measuring point – 150 mm, e.g.:Hot wire air velocity, pitot tube, anemometer. )
Vane air flow meter, Anemometer:According to the internal size of the cavity, size: 250 mm x 250 mm.

● Suggestions
Customers are advised to calibrate with own Instrumentation / Meter / Indicator.

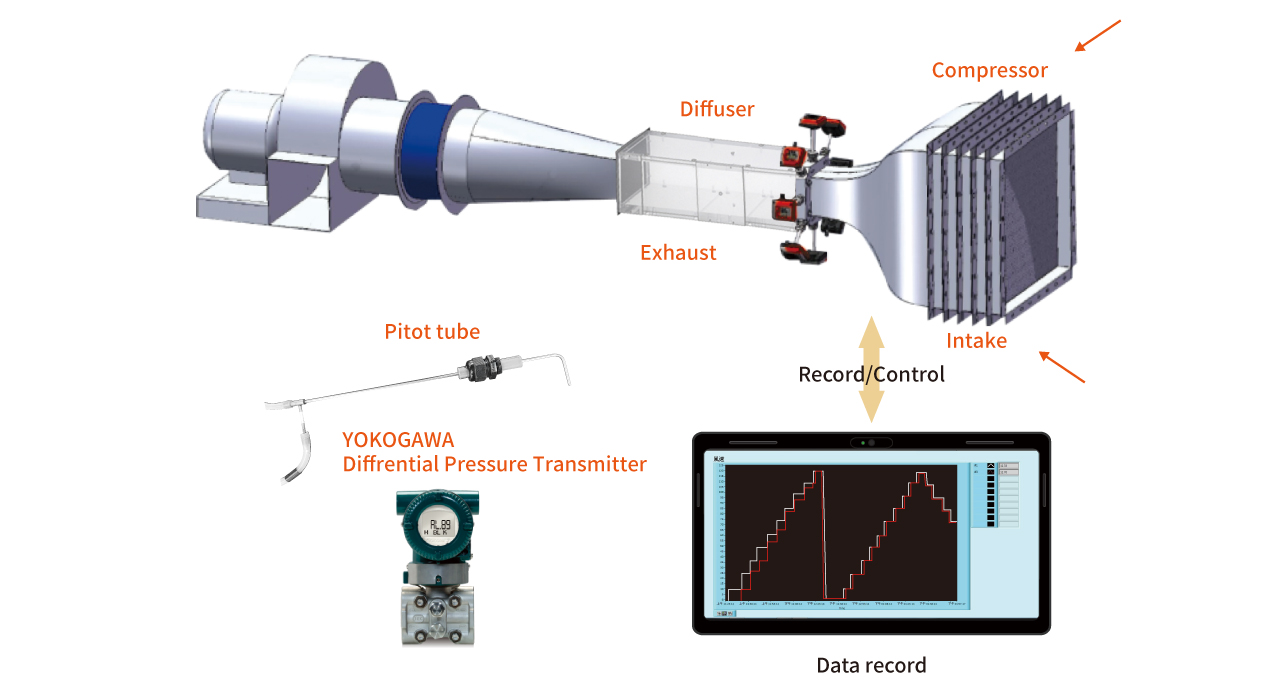

■ Calibration system architecture diagram

Air Velocity Standard Calibration Laboratory

■ Accredited capabilities


Working standard
Check
Meter
0 m/s ... 40 m/s eYc Hot wire air velocity transmitter / 40 m/s ... 60 m/s Pitot tube air velocity transmitter
Scope of accreditation
0.2 m/s ... 60 m/s
Smallest Uncertainty
0.08 m/s ... 0.85 m/s
