Dew point calibration
|
|
■ Features
● Temperature : -80°C … +60°C；Smallest Uncertainty : 0.14°C ... 1.7°C
● Low uncertainty, quickly repeat testing, suitable for the calibration of the dew point instrument
■ Dew Point Calibration Condition
● Type
1. Measuring rod / Probe type, with gas port
2. Outer : φ 16 mm or less
3. Thread : PT / G / UNF
4. Pedestal depth : At least 4 cm, under the thread. (Not included thread )
Suggestions
If not the φ 16 mm outer diameter or PT / G / UNF thread, please provide the related tools or accessory. (e.g. Pedestal / Special gas port size /Pipeline so on.)

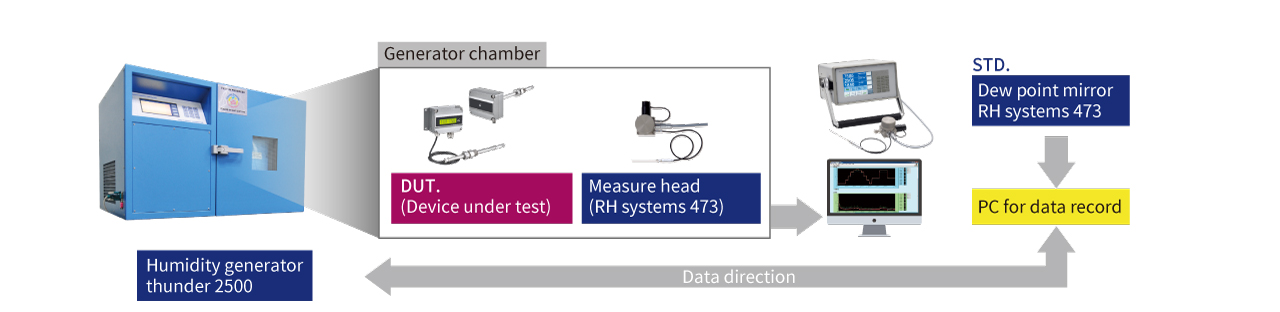

■ Calibration System Architecture Diagram (-20°C ... +60°C)

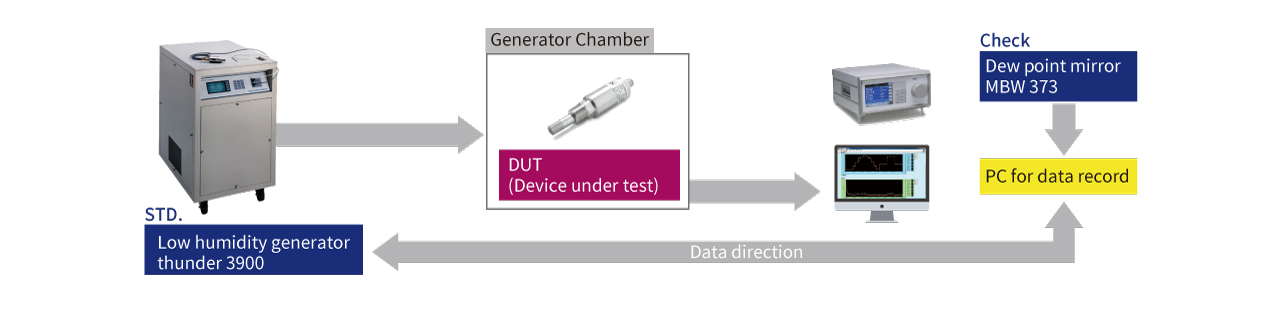

■ Calibration System Architecture Diagram (-80°C ... -20°C)
■ Accredited Capabilities
|
|
Working standard |
Check |
|
Meter |
RH systems 473／Thunder 3900
|
RH systems 473／MBW 373
|
|
Scope of accreditation |
- 80 ℃ ... + 60 ℃ |
|
|
Smallest Uncertainty |
0.14°C ... 1.7 °C |
|
