Rheonik

View:

Rheonik RHE16 Compact Multifunction Coriolis Flow Meter Transmitter

MEASUREMENTS:Mass Flow / Density / Temperature
FUNCTIONS:Volume Flow / Advanced Diagnostics / Flow Data Analysis
OUTPUTS:1 Analog / 2 Frequency / 2 Pulse / 2 Digital Status
INTERFACES:RS 485 / MODBUS

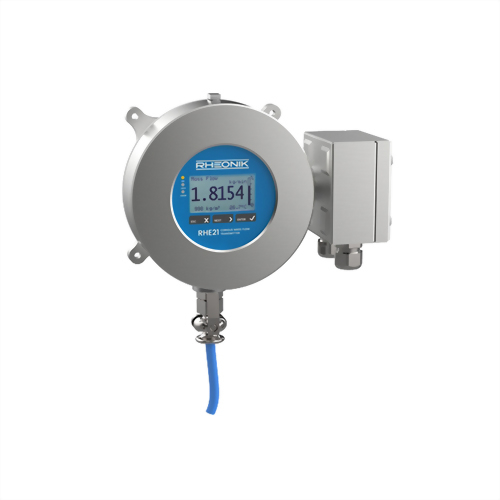

Rheonik RHE21 Exd / Exd(e) Extreme Environment Multifunction Coriolis Flow Transmitter

MEASUREMENTS:Mass Flow / Volumetric Flow / Density / Temperature
FUNCTIONS:Batch / Filling Control / Standard Volume Gas Flow / Assurance Factor® / API std. Volume, Net Oil / Tamperproof Lock Switch
OUTPUTS:2 x Analog / 2 x Frequency / Pulse / 2 x Digital Status
INPUTS:2 x Digital / 1 x Analog
INTERFACES:PC USB / RHECom / RS-485 / Modbus RTU / HART over analog
APPROVALS:ATEX / IEC Ex / CSA

Rheonik RHM08 Versatile Coriolis Mass Flow Meter

TYPICAL APPLICATION RANGE:0.3 up to 50 kg/min
MAX. PRESSURE:1254 bar / 18057 psi
TEMPERATURE:-196 up to +400°C
ACCURACY:0.1% of rate
MATERIALS:316Ti / Alloy C22 / HP160 / Tantalum / more on request
PROCESS CONNECTIONS:1/2″ up to 2″

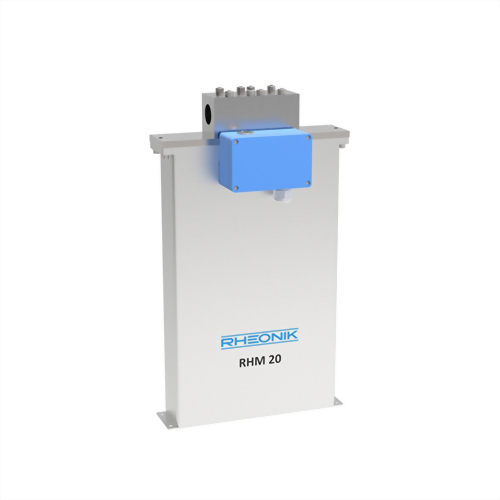

Rheonik RHM20 Industrial Coriolis Mass Flow Meter

TYPICAL APPLICATION RANGE:2.25 up to 300 kg/min
MAX. PRESSURE:799 bar / 11588 psi
TEMPERATURE:-196 up to +400°C
ACCURACY:0.1% of rate
MATERIALS:316Ti / 904L / Alloy C22 / Tantalum / more on request
PROCESS CONNECTIONS:1″ up to 3″

Rheonik RHM15 Process Sized Coriolis Mass Flow Meter

TYPICAL APPLICATION RANGE:1 up to 200 kg/min
MAX. PRESSURE:882 bar / 12792 psi
TEMPERATURE:-196 up to +400°C
ACCURACY:0.1% of rate
MATERIAL:316Ti / Alloy C22 / SuperDuplex / Tantalum / more on request
PROCESS CONNECTIONS:3/4″ up to 2″

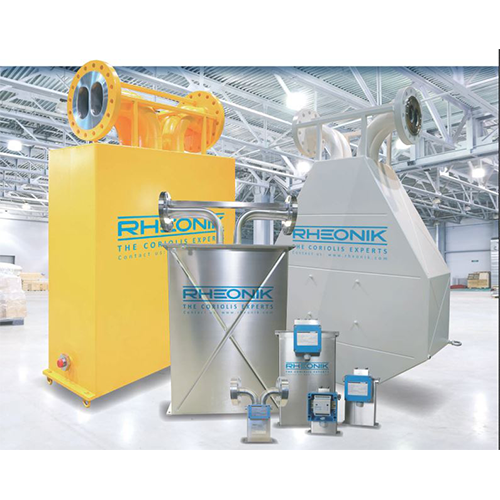

Rheonik mass flow meter and Coriolis meter

Rheonik RHM12 Standard 1 inch Coriolis Mass Flow Meter

TYPICAL APPLICATION RANGE:0.75 up to 100 kg/min
MAX. PRESSURE:1097 bar / 15910 psi
TEMPERATURE:-196 up to +400°C
ACCURACY:0.1% of rate
MATERIALS:316Ti / Alloy C22 / SuperDuplex / Tantalum / more on request
PROCESS CONNECTIONS:3/4″ up to 2″
