Temp. Standard Calibration Laboratory
ILAC|TAF (ISO/IEC 17025) Accredited No. 3032
|
|
■ Features
● Resistance thermometer：-40°C … +300°C；Smallest uncertainty：0.029°C
... 0.070°C
● Thermocouple thermometer：-20°C … +300°C；Smallest uncertainty：0.23°C
... 0.088°C
● Check mechanism by precision and stable Fluke system
● Low uncertainty, repeat testing quickly, suitable for all kinds of resistance and thermocouple thermometers
■ Temperature Calibration Condition
● With display
● Limited style: Probe type, 1/2 '' thread or less, No flange
● Length specification: at least 10 cm (without thread)
● Outer diameter of measuring rod: φ12 mm or less
● The outer diameter of the body: φ34 mm or less
● Use a sink below 20°C, The temperature sensor chip must not be exposed, No water can enter the coating
Suggestions：
Customers are advised to calibrate with own Instrumentation/Meter/Indicator.
* For all the above items, the non-eYc products must be accompanied by the instrument operating manual.

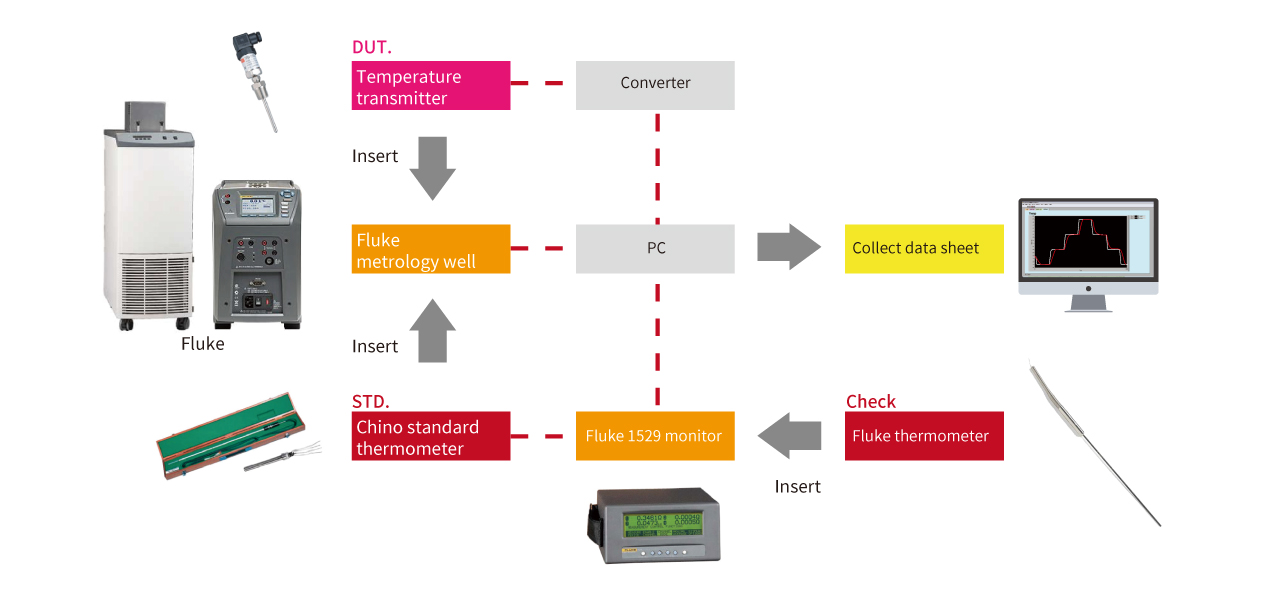

■ Calibration system architecture diagram
■ Accredited capabilities
|
Resistance thermometer
|
Thermocouple thermometer
|
Working standard
|
Chino
standard platinum thermometer
|
Chino
standard platinum thermometer
|
Scope of Accreditation
|
-40°C ... +300°C
|
-20°C ... +300°C
|
Smallest Uncertainty
|
0.029°C ... 0.070°C
|
0.23°C ... 0.88°C
|
