Features

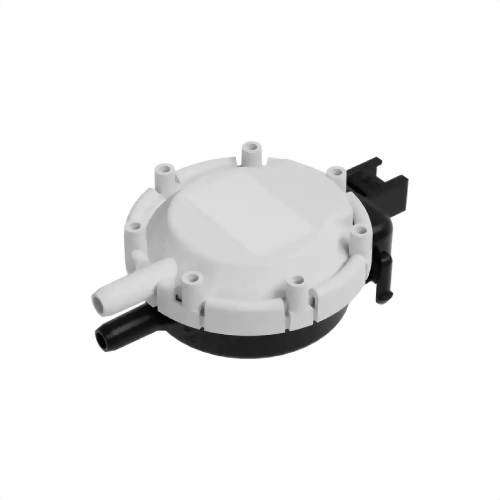

The differential pressure transmitters of Type 402 are ideal for detecting small airflows in HVAC systems and for measuring low pressures in the environmental and medical sectors. Sensors specifically developed for each pressure range enable physically accurate and long-term stable measurements. They allow for simple and quick installation, either directly onto a mounting plate or onto a PCB
•Attractive price-performance ratio
•Excellent synergy of membrane technology and ceramic elements
•Special adapter for DIN rail mounting
•Direct PCB mounting with simple snap system
•Attractive price-performance ratio
•Excellent synergy of membrane technology and ceramic elements
•Special adapter for DIN rail mounting
•Direct PCB mounting with simple snap system
Applications
VAV systems / ERV / Mobile hydraulics / Industrial automation
Specification
| Product feature | |
|---|---|
| Pressure measuring range |
0 ... 3 – 50 mbar (Relative and difference) |
| Response time |
<10 ms |
| Load change |
<10 Hz |
| Sensor weight |
28 g |
| Field of application | |
| Media |
Air; Neutral gases |
| Medium temperature |
0 ... 70 °C (Non-freezing media) |
| Permissible overload on one side |
100 mbar |
| Bursting pressure (at room temperature) |
200 mbar |
| Bursting pressure (at 70°C) |
150 mbar |
| Ambient condition | |
| Ambient temperature |
0 ... 70 °C |
| Storage temperature |
-30 ... 70 °C |
| Material | |
| Housing with media contact |
Polycarbonate (PC); Polyamide (PA) |
| Membrane with media contact |
Silicone |
| Measuring element with media contact |
Ceramic Al2O3 (96 %) |
| Electrical data | |
| Output pressure |
0,5 ... 4,5 V |
| Supply voltage |
10,2 ... 33 VDC |
| Permissible load |
>15 kOhm (against GND) |
| Current consumption |
<8 mA |
| Inverse-polarity protection |
Mechanically guaranteed |
| IP protection class |
IP 00 |
| Electrical connection |
Printed circuit board assembly (Solderable pins on the print side); Printed circuit board assembly (Mounted and soldered on adapter); RAST 2.5 connector |
| Approval | |
| EMC compatibility |
The product is intended exclusively for installation in appliances that fulfil the requirements of the EC directives. CE certification is the responsibility of the customer. |
| Installation guide | |
| Installation orientation |
Pressure connections downwards; Pressure connection P1 top |
| Assembly |
Snap-on mounting on printed circuit board (max. 1.6 mm thickness); Adapter; Screw mounting with bracket |
Download
Note : Design and specifications are subject to change without notice.
Note : Please make sure the product and the device which connect with RS-485 are on common ground, avoid damaged product.
