Features

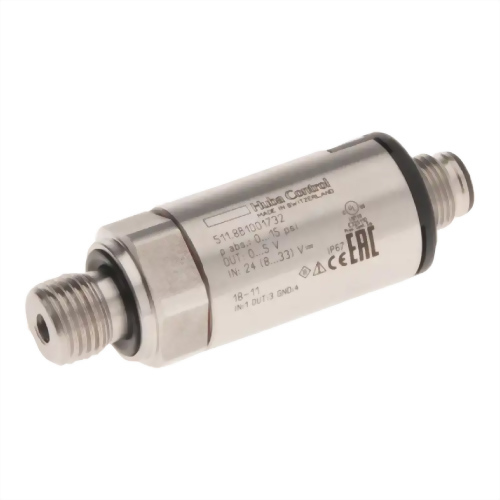

The compact pressure transmitters of Type 511 meet the highest demands in terms of robustness, accuracy, temperature stability, and EMC properties. They are therefore suitable for use in a wide range of industrial applications.
•Compact and robust design for maximum operational safety
•No media leakage when exceeding burst pressure
•Minimal temperature influences on accuracy
•Excellent EMC properties
•Time-saving, fast customer-side cable assembly with quick cable screw connection
•Compact and robust design for maximum operational safety
•No media leakage when exceeding burst pressure
•Minimal temperature influences on accuracy
•Excellent EMC properties
•Time-saving, fast customer-side cable assembly with quick cable screw connection
Specification
| Product feature | |
|---|---|
| Pressure measuring range |
-1 ... 0 – 600 bar |
| Media stop system |
Media stop system to prevent media from escaping if the bursting pressure range is exceeded. (> 40 bar nominal pressure) |
| Response time |
<2 ms (typ. 1 ms) |
| Load change |
<100 Hz |
| Sensor weight |
85; 95 g |
| Field of application | |
| Media |
Liquids and gases |
| Permissible overload |
2,5 x FS (max. 900 bar); 3 x FS |
| Bursting pressure |
2,5 x FS (max. 900 bar); 3 x FS |
| Ambient condition | |
| Ambient temperature |
<125 °C |
| Material | |
| Housing |
Stainless steel 1.4305 (AISI 303) |
| Measuring element with media contact |
Ceramic Al2O3 (96 %) |
| Pressure connection with media contact |
Stainless steel 1.4305 (AISI 303) |
| Media stop system with media contact |
PPS |
| Sealing material with media contact |
FPM; EPDM; NBR; FPM spez. |
| Electrical data | |
| Current consumption |
<20 mA |
| Inverse-polarity protection |
Short-circuit and reverse polarity protected. Each connection against each other with max. supply voltage. |
| Insulation voltage |
500; 1000 VDC |
| Electrical connection |
Cable 1.5 m; Cable quick connector; AMP connector (Junior Power Timer); M12x1 connector plastic thread; M12x1 connector metal thread; Connector DIN EN 175301-803-C (industry standard 9.4 mm) |
| Installation guide | |
| Installation orientation |
any |
| Approval | |
| EMC compatibility |
CE-compliant in accordance with EN 61326-2-3 |
| UL |
according to standard 61010-1 |
| Shock according to IEC 60068-2-27 |
100 g, 11 ms half sine wave, all 6 directions. Free fall from 2 m onto concrete (6x). |
| Permanent shock according to IEC 60068-2-29 |
40 g over 6 ms, 1000x all 3 directions. |
| Vibration according to IEC 60068-2-6 |
20 g, 2 ... 2000 Hz with amplitude ± 15 mm, 1 octave / minute in all 3 directions, 50 continuous loads. |
