Features

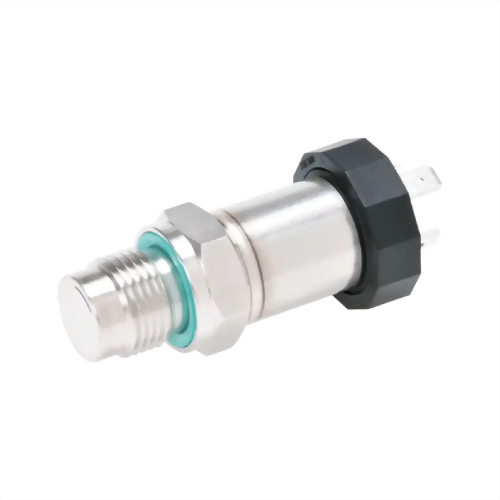

The pressure transmitters of Type 680 with piezoresistive measuring elements have compensated, calibrated, and amplified sensor signals, which are output as standardized voltage or current outputs. The housing with the electronics can be combined by the manufacturer with various pressure and electrical connections. All metal parts made of stainless steel are hermetically welded. This sophisticated modular system allows for individual design for your application needs.
• High overload safety due to chemically etched chip membrane and special design of the glass feedthrough
• Fast and cost-effective customer solutions through modular system even for small series
• Compact design in SMD technology increases operational safety during shock and vibrations
• 100 % sealed against medium, as fully welded
• High overload safety due to chemically etched chip membrane and special design of the glass feedthrough
• Fast and cost-effective customer solutions through modular system even for small series
• Compact design in SMD technology increases operational safety during shock and vibrations
• 100 % sealed against medium, as fully welded
Specification
| Product feature | |
|---|---|
| Pressure measuring range |
0 ... 0.1 - 1000 bar |
| Pressure measuring range |
25 ... 1000 mbar (Overpressure) |
| Sensor weight |
250 g (Cable version (2 m)); 150 g (Plug version) |
| Field of application | |
| Media |
Process medium; Gas |
| Permissible overload on one side |
3x Pressure range (minimum 3 bar); 3x Pressure range (maximum 850 bar) |
| Bursting pressure |
>200 bar |
| Permissible overload on one side |
1500 bar |
| Ambient condition | |
| Ambient temperature |
-40 ... 125 °C |
| Storage temperature |
-40 ... 125 °C |
| Material | |
| Housing |
Stainless steel 1.4435 (316L, titanium or Hastelloy C on request) |
| Pressure connection |
Stainless steel 1.4435 (316L, titanium or Hastelloy C on request) |
| Membrane |
Stainless steel 1.4435 (316L, titanium or Hastelloy C on request) |
| Sealing material |
FPM (others on request) |
| Approval | |
| Mechanical loads |
Vibration (EN 60068-2-6); Shock (EN 60068-2-27) |
| Interference emission |
Interference emission, class B (EN 55022) |
| Interference resistant |
Discharge of static electricity (EN 61000-4-2); Irradiated electromagnetic field (EN 61000-4-3); Fast transients (burst) (EN 61000-4-4); Surge voltages (surge) (EN 61000-4-5); Surge voltages (surge) (EN 61000-4-5); Conducted electromagnet. Interference (EN 61000-4-6) |
