Features

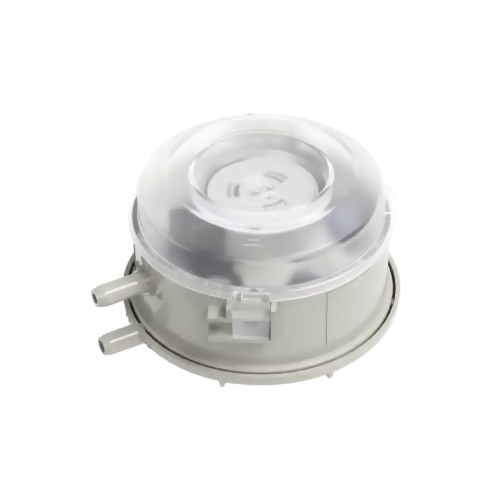

The pressure switches of Type 604 monitor filters and fans in ventilation ducts as well as air dampers in primary/secondary controls in Δp function. The series, divided into five pressure range gradations, impresses with extreme ease of installation, combination brackets, snap-on covers, and screw terminals. Unique is the high adjustment accuracy through individual scale engraving.
• Easy to install
• User-friendly snap closure for the cover
• Cable entry aid
• Cable strain relief integrated into PG11
• Combination bracket for vertical or horizontal mounting
• High adjustment accuracy through individual scale engraving per switch
• Long-term stable switching points through trapezoidal bead membrane
• Multilayer contact with gold platin
• Easy to install
• User-friendly snap closure for the cover
• Cable entry aid
• Cable strain relief integrated into PG11
• Combination bracket for vertical or horizontal mounting
• High adjustment accuracy through individual scale engraving per switch
• Long-term stable switching points through trapezoidal bead membrane
• Multilayer contact with gold platin
Applications
AHU / CRAC / Mobile hydraulics
Applications
Specification
| Product feature | |
|---|---|
| Pressure measuring range |
0 ... 50 mbar (Relative and difference) |
| Sensor weight |
143 g (With type C combination bracket) |
| Field of application | |
| Media |
Air; neutral gas |
| Medium temperature |
-30 ... 85°C |
| Permissible overload on one side |
75 mbar (-30 ... 75°C); 50 mbar (-30 ... 85°C) |
| Ambient condition | |
| Ambient temperature |
-30 ... 85°C |
| Storage temperature |
-40 ... 85°C |
| Material | |
| Housing with media contact |
PC 10 % GF |
| Measuring element with media contact |
Silicone LSR (tempered at 200 °C, outgassing-free) |
| Cover with media contact |
PC |
| Electrical data | |
| Switching load |
5 A (at 250 VAC) |
| Resistive switching load |
4 A (at 30 VDC) |
| Inductive switching load |
0.8 A (at 250 VAC); 0.7 A (at 30 VDC) |
| Switching load GAR Application |
1 A (at 250 VAC); 0.2 A (at 30 VDC) |
| Contact system |
Changeover switch |
| Lifespan |
>10000000 Schaltspiele (mechanical) |
| Installation guide | |
| Installation orientation |
any (Recommendation: Vertical, pressure connections downwards; factory adjustment); any (Recommendation: Horizontal, cover down; switching points are approx. 11 Pa lower than the set scale value); any (Recommendation: Horizontal, cover upwards; switching points are approx. 11 Pa higher than the set scale value) |
| Approval | |
| UL |
MFHX2/8 or XAAK2/8 |
| DVGW |
according to DIN EN 1854 |
| Low Voltage Directive |
2014/35/EU |
| Gas Appliances Directive |
2016/426/EU |
Download
Note : Design and specifications are subject to change without notice.
