Features

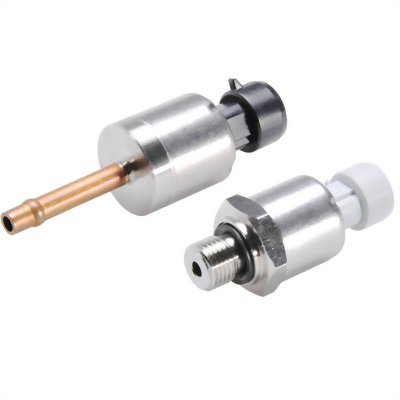

The pressure transmitters of Type 560 combine top performance with Swiss precision. The proven Huba Control stainless steel sensor technology is characterized by a hermetically welded design and high overpressure resistance. Since no seals are installed inside, the risk of internal leaks is eliminated. The 560 is ideally suited for demanding applications in refrigeration, hydraulics, compressed air, and other industries where reliability, long-term stability, and precision are crucial. The stainless steel technology enables the use of natural refrigerants such as R290, CO₂, and ammonia.
•Compact and robust stainless steel design
•Hermetically welded design without seals, no risk of leakage
•100 % inline helium leak test during production
•Compliant with DIN EN 60335-2-40
•Various configuration options
•Easy to install and maintenance-free

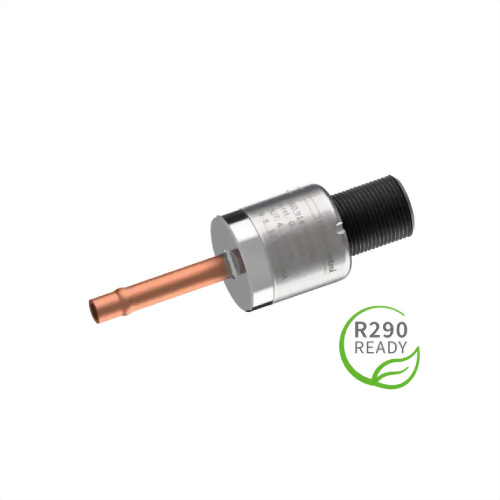

R290 Ready: This sensor is VDE Mark Approved according to EN IEC 60335-2-40 and designed for safe use in heat pumps with propane (R290) - observe application limits and media compatibility according to data sheet/certificate.
•Compact and robust stainless steel design
•Hermetically welded design without seals, no risk of leakage
•100 % inline helium leak test during production
•Compliant with DIN EN 60335-2-40
•Various configuration options
•Easy to install and maintenance-free
R290 Ready: This sensor is VDE Mark Approved according to EN IEC 60335-2-40 and designed for safe use in heat pumps with propane (R290) - observe application limits and media compatibility according to data sheet/certificate.
Applications
Hybrid heat pumps / Refrigeration systems / Circulation cooler / Heat pumps / Large heat pumps
Specification
| Product feature | |
|---|---|
| Pressure measuring range (Relative) |
-1 ... 7 bar / 0 ... 10 – 150 bar |
| Response time |
<5 ms (typ. 2 ms); <5 ms (typ. 2 ms) |
| Sensor weight |
90 g |
| Field of application | |
| Media |
Refrigerant; Hydraulic oils; Non-corrosive gases |
| Medium temperature |
-40 ... 125 °C (Non-freezing media); -40 ... 120 °C (Non-freezing media) |
| Permissible overload |
3 x FS (max. 200 bar) |
| Bursting pressure |
6 x FS (max. 600 bar) |
| Ambient condition | |
| Ambient temperature |
-40 ... 85 °C |
| Storage temperature |
-40 ... 100 °C |
| Material | |
| Housing |
Stainless steel 1.4301; Stainless steel 1.4404 |
| Plug receptacle |
Polyarylamide 50 % GF (UL94 V0) |
| Thread with media contact |
Stainless steel 1.4301 (AISI 304) |
| Solder connection with media contact |
CuDHP / CW024A |
| Measuring element with media contact |
Stainless steel 1.4016 |
| Electrical data | |
| Output pressure |
4 ... 20 mA |
| Output pressure |
10 ... 90 % (ratiometric) |
| Supply voltage |
2,97 ... 32 VDC |
| Current consumption |
<23 mA |
| Insulation voltage |
500 VDC |
| Inverse-polarity protection |
Short-circuit and reverse polarity protected. Each connection against each other with max. supply voltage. |
| IP protection class |
IP 67; IP 67 |
| Protection class |
3 |
| Mechanical data | |
| Sealing type |
Sealing cone 45º and Schrader nipple; Sealing cone 45º; Sealing in the thread; Sealed at back ISO 1179-2 (DIN 3852-E) with FKM profile seal; Sealed at back ISO 1179-2 (DIN 3852-E) with EPDM profile seal |
| Pipe length |
35 mm |
| Installation guide | |
| Installation orientation |
any |
| Approval | |
| UL |
ANSI/UL 61010-1 gemäss E325110 |
| EMC compatibility |
CE-compliant in accordance with EN 61326-2-3 |
| Hermetic tightness |
Hermetic tightness tested in accordance with EN ISO 14903:2017 |
| Surface temperature in operating and single fault case |
Assessment according to DIN EN 60335-2-40 |
| Vibration resistance |
Tested according to EN/IEC 60068-2-6 |
| Shock resistance |
Tested according to IEC 60068-2-27 |
| Pressure measurement | |
| Accuracy |
0,75 % FS |
| Total error band -25 ... 85 °C |
1 % FS |
| Total error band -40 ... 125 °C |
1,5 % FS |
Download
