Features

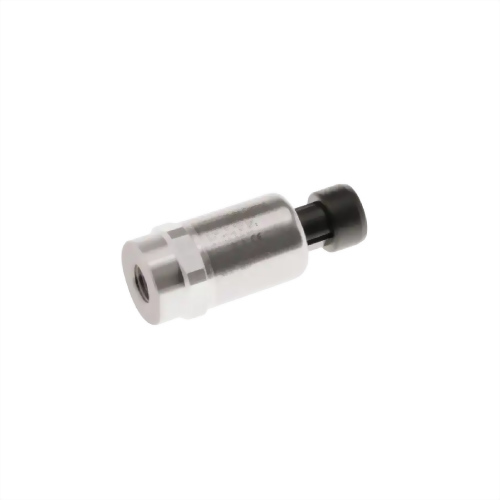

The pressure transmitters of Type 555 have been specifically developed for use in mobile hydrogen applications and are certified according to EC79/2009. These high-pressure sensors are designed to meet the requirements of hydrogen measurement tasks in mobility applications. The sensor is available with protection ratings of IP67 or IP69K and features a compact and robust design that complies with the shock and vibration resistance requirements of the automotive standard ISO 16750. The measuring cell is based on the thick-film technology on stainless steel developed by Huba Control. It is seal-free and hermetically welded to the pressure sensor, ensuring high reliability and durability.
•Suitable for gaseous hydrogen
•Compact and robust design for maximum operational safety
•Welded without seals
•Excellent EMC properties
•Minimal temperature influences on accuracy
•Suitable for gaseous hydrogen
•Compact and robust design for maximum operational safety
•Welded without seals
•Excellent EMC properties
•Minimal temperature influences on accuracy
Specification
| Product feature | |
|---|---|
| Pressure measuring range |
0 ... 10 – 900 bar (Relative) |
| Response time |
<2 ms (10 ... 90 %, typ. 1 ms) |
| Load change |
<100 Hz |
| Sensor weight |
90 g |
| Field of application | |
| Media |
Gaseous hydrogen |
| Medium temperature |
-40 ... 85 °C |
| Permissible overload |
see variant plan |
| Bursting pressure |
see variant plan |
| Ambient condition | |
| Ambient temperature |
-40 ... 85 °C |
| Storage temperature |
-50 ... 100 °C |
| Material | |
| Housing |
Stainless steel 1.4404 (AISI 316L) |
| Plug receptacle |
Polyarylamide 50 % GF UL 94 V-0 |
| Measuring element with media contact |
Stainless steel 1.4435 |
| Pressure connection with media contact |
Stainless steel 1.4404 (AISI 316L) |
| Electrical data | |
| Current consumption |
<23 mA |
| Inverse-polarity protection |
Short-circuit and reverse polarity protected. Each connection against each other with max. supply voltage. |
| Insulation voltage |
500 VDC (Standard) |
| IP protection class |
IP 69 K; IP 67 |
| Protection class |
3 |
| Installation guide | |
| Installation orientation |
any |
| Approval | |
| EMC compatibility |
ISO 13766 - Earth-moving machinery (Immunity to interference / interference emission); DIN EN 13309 - Construction machinery (Immunity to interference / interference emission); DIN ISO 14982 - Forestry and agriculture (Immunity to interference / interference emission); Motor Vehicle Directive ECE R10 (Immunity to interference / interference emission); Motor Vehicle Directive 2004/104/EC (Immunity to interference / interference emission); EN 61326-2-3 - Pressure transmitters (Immunity to interference / interference emission); EN 12895:2015 - Industrial trucks (Immunity to interference / interference emission); CISPR11 (Immunity to interference / interference emission); ISO 11452-2, HF (Field), 100 V/m (200 ... 2000 MHz) (Immunity to interference Motor Vehicle Directive); ISO 11452-4, HF (BCI), 100 mA (20 ... 400 MHz) (Immunity to interference Motor Vehicle Directive); ISO 10605, ESD, ±15 kV contact, ±15 kV air (Immunity to interference Motor Vehicle Directive); ISO 7637-2 3), pulses 1, 2a, 2b, 3a, 3b (test level 4) (Immunity to interference Motor Vehicle Directive); ISO 16750-2, Load Dump, 155 V (1 Ω, 300 ms) (Immunity to interference Motor Vehicle Directive) |
| Shock |
50 g, 11 ms, half-sine curve, 1000x / axis (according to ISO 16750-3) |
| Vibration |
Test VI (12 g, sinusodial 18 g random vibration) (according to ISO 16750-3) |
