Features

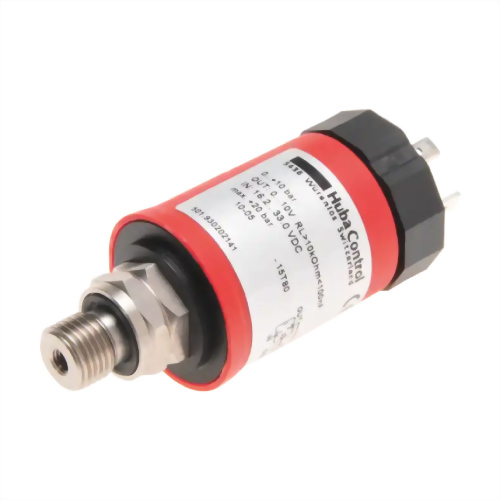

Type 501 pressure sensors are ideally suited for high-volume OEM projects in industrial automation thanks to semi-automated production. Various pressure connections and electrical connections are available with standardized output signals for easy system integration.
• Compact design
• Best price/performance ratio through automated production
• Rugged ceramic sensor technology
• High temperature resistance
• No mechanical creep
• Compact design
• Best price/performance ratio through automated production
• Rugged ceramic sensor technology
• High temperature resistance
• No mechanical creep
Specification
| Product feature | |
|---|---|
| Pressure measuring range |
-1 ... 0 – 60 bar |
| Response time |
<5 ms |
| Load change |
<50 Hz |
| Sensor weight |
95 g; 110 g |
| Cable weight |
40 g |
| Field of application | |
| Media |
Liquids and gases |
| Medium temperature |
-15 ... 80°C |
| Permissible overload |
2 x FS (max. 80 bar) |
| Bursting pressure |
3 x FS (max. 90 bar) |
| Ambient condition | |
| Ambient temperature |
-15 ... 80°C |
| Storage temperature |
-40 ... 80°C |
| Material | |
| Housing |
PA6 |
| Measuring element (with media contact) |
Ceramic Al2O3 (96%) |
| Pressure connection (with media contact) |
Stainless steel 1.4305 (AISI 303) |
| Sealing material (with media contact) |
FPM; EPDM; NBR; MVQ |
| Electrical data | |
| Output (mA) |
4 ... 20 mA |
| Output (V) |
0 ... 10 V |
| Output (%) |
10 ... 90% (ratiometric) |
| Supply voltage |
5 VDC (±5%) |
| Current consumption |
<20 mA |
| Inverse-polarity protection |
Short-circuit and reverse polarity protected. Each connection against each other with max. supply voltage. |
| Installation guide | |
| Installation orientation |
Recommendation: Pressure connections downwards |
| Approval | |
| EMC compatibility |
CE-compliant in accordance with EN 61326-2-3 |
