Features

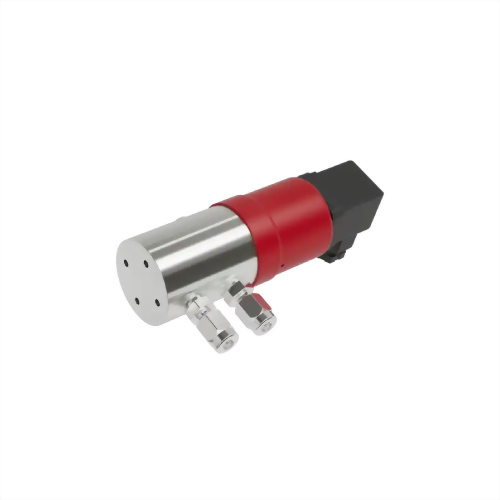

The pressure transmitter of type 692 with proven, unique ceramic technology, features adjusted and amplified sensor signals which are available as standardised voltage or current outputs.
Various application-specific pressure and electrical connections and housing materials suitable for different media can be provided.
Applications
Very low temperature sensitivity
High resistance to extreme temperatures
No mechanical creepage
Modular system and choice of materials to suit individual applications
High resistance to extreme temperatures
No mechanical creepage
Modular system and choice of materials to suit individual applications
Specification
Medium : Liquids and gases
Pressure range : 0 ... 0.1 – 25 bar
Output : 0 ... 5 V, 0 ... 10 V, 4 ... 20 mA
Accuracy : < 0.5% fs
Electrical connection : Cable 1.5 m, connector DIN EN 175301-803-A, connector DIN EN 60130-9
Pressure connection : Hose connection or screw fitting, outside thread, adapter inside- and outside thread
Mounting bracket for screw mounting
The specifications contained herein are subject to change without notice and any user of said specifications should verify from the manufacturer that the specifications are currently in effect.Otherwise, the manufacturer assumes no responsibility for the use of specifications which may have been changed and are no longer in effect.
Pressure range : 0 ... 0.1 – 25 bar
Output : 0 ... 5 V, 0 ... 10 V, 4 ... 20 mA
Accuracy : < 0.5% fs
Electrical connection : Cable 1.5 m, connector DIN EN 175301-803-A, connector DIN EN 60130-9
Pressure connection : Hose connection or screw fitting, outside thread, adapter inside- and outside thread
Mounting bracket for screw mounting
The specifications contained herein are subject to change without notice and any user of said specifications should verify from the manufacturer that the specifications are currently in effect.Otherwise, the manufacturer assumes no responsibility for the use of specifications which may have been changed and are no longer in effect.
Download
Note : Design and specifications are subject to change without notice.
Note : Please make sure the product and the device which connect with RS-485 are on common ground, avoid damaged product.
