Features

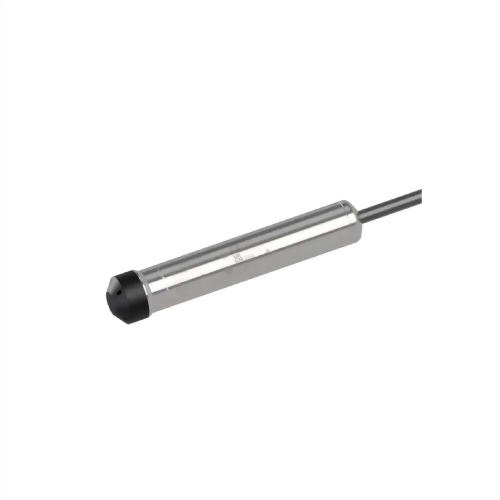

The hydrostatic level transmitters of Type 711 are equipped with a relative pressure measuring cell and convert the hydrostatic level pressure into a 4 … 20 mA output signal. Additionally, cable lengths ranging from 3 to 300 meters are available. Variants with explosion protection as well as drinking water approvals are also offered.
• Available with explosion protection
• High accuracy
• Cable lengths from 3 … 300 m
• Low-pressure ranges
• Available in seawater-resistant design
• Available with explosion protection
• High accuracy
• Cable lengths from 3 … 300 m
• Low-pressure ranges
• Available in seawater-resistant design
Specification
| Product features | |
|---|---|
| Pressure range |
Relative 0 ... 0.1 - 16 bar |
| Special features |
Ex-version available; |
| Operating conditions | |
| Medium |
Fuel oil ultra-light SN 181 160-2; |
| Temperature |
Medium and ambient -10 ... +80 °C |
| Electrical data | |
| Output |
2 wire 4 ... 20 mA |
| Power supply |
10 ... 33 VDC (Ex: 10 ... 30 VDC) |
| Approvals | |
| EMC |
CE conformity acc. EN 61326-2-3 |
| Ex protection |
IECEx SEV 12.006 Ex ia IIC T4 Ga; |
Download
Note : Design and specifications are subject to change without notice.
Note : Please make sure the product and the device which connect with RS-485 are on common ground, avoid damaged product.
