TYPE

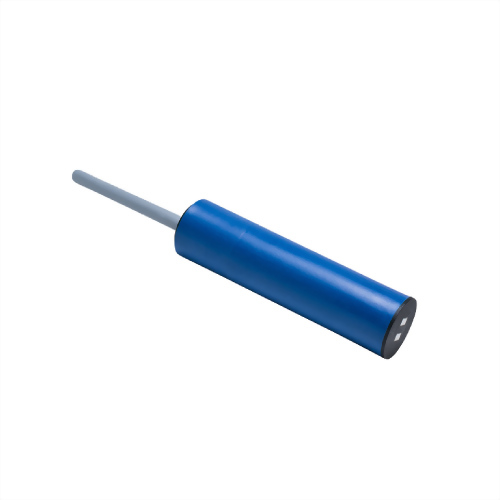

LN 520 GA

Product ID

P11097

Medium

air, non-explosive gas

Detection range air

0.5 ... 15 m/s

Process connection

Ø 20 mm

Output

analog output 4…20 mA

Output function

non linear

Supply voltage

24 V DC +/- 20 %

Current consumption max.

100 mA

Load RL

200 ... 500 Ω

Reverse polarity protection

✓

Ambient temperature

-20 ... 70 °C

Medium temperature

-20 ... 70 °C

Temperature gradient gaseous media

200 K/min

Start-up time

20 ... 40 s

Reaction time typ.

3 s

Material sensor touched by medium

AL2O3, PBT, PUR

Material housing

PBT

Protection [EN 60529]

IP 67

Electrical connection

2 m PVC-cable 3x0.5 mm²

Accessories (in scope of delivery)

plastic flange ø20 (Z01106), screwdriver

Note

probe with longer cable available on request
