TYPE

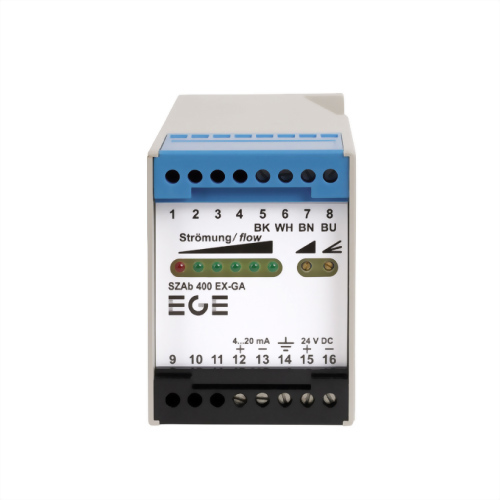

SZAb 400 EX-GA

TYPE

SZAb 400 EX-GR

TYPE

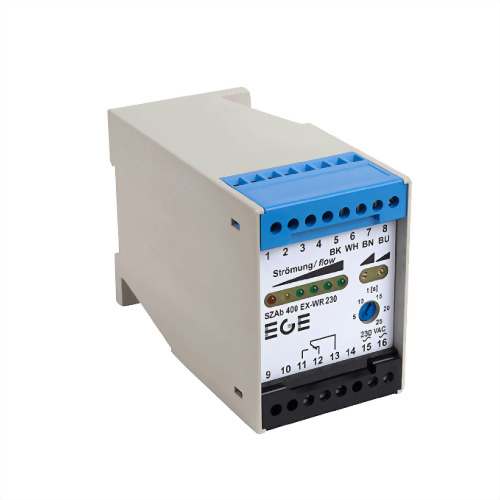

SZAb 400 EX-WR230

Product ID

P11401

Product ID

P11398

Product ID

P11400

Output

analog output 4…20 mA

Output

switching output

Output

switching output

Output function

non linear

Output function

relay / change-over

Output function

relay / change-over

Supply voltage

24 V DC +/- 15 %

Turn off delay

0...25 s

Turn off delay

0...25 s

Load RL

0 ... 500 Ω

Supply voltage

24 V DC +/- 15 %

Supply voltage

230 V AC +/- 10%

Reverse polarity protection

✓

Switching voltage max.

250 V AC / 60 V DC / 24 V DC

Switching voltage max.

250 V AC / 60 V DC / 24 V DC

ATEX Certificate

EPS 19 ATEX 1 009

Switching current max.

4 A AC / 0,8 A DC / 4 A DC

Switching current max.

4 A AC / 0,8 A DC / 4 A DC

IECEx Certificate

IECEx EPS 19.0001

Switching Load

cos φ > 0,7 ; L/R <200 ms

Switching Load

cos φ > 0,7 ; L/R <200 ms

ATEX marking gas

Ex II (1) G [Ex ia Ga] IIC

Reverse polarity protection

✓

ATEX Certificate

EPS 19 ATEX 1 009

ATEX Marking dust

Ex II (1) D [Ex ia Da] IIIC

ATEX Certificate

EPS 19 ATEX 1 009

IECEx Certificate

IECEx EPS 19.0001

IECEx marking gas

[Ex ia Ga] IIC

IECEx Certificate

IECEx EPS 19.0001

ATEX marking gas

Ex II (1) G [Ex ia Ga] IIC

IECEx marking dust

[Ex ia Da] IIIC

ATEX marking gas

Ex II (1) G [Ex ia Ga] IIC

ATEX Marking dust

Ex II (1) D [Ex ia Da] IIIC

Maximum values

Uo = 13.65 V / Io = 200 mA / Po = 683 mW; IIC: Co = 0.35 µF / Lo = 1.1 mH; IIB: Co = 1.8 µF / Lo = 6.2 mH; IIA: Co = 5.7 µF / Lo = 11.0 mH

ATEX Marking dust

Ex II (1) D [Ex ia Da] IIIC

IECEx marking gas

[Ex ia Ga] IIC

Ambient temperature

-20 ... 60 °C

IECEx marking gas

[Ex ia Ga] IIC

IECEx marking dust

[Ex ia Da] IIIC

Protection [EN 60529] terminal

IP 20

IECEx marking dust

[Ex ia Da] IIIC

Maximum values

Uo = 13.65 V / Io = 200 mA / Po = 683 mW; IIC: Co = 0.35 µF / Lo = 1.1 mH; IIB: Co = 1.8 µF / Lo = 6.2 mH; IIA: Co = 5.7 µF / Lo = 11.0 mH

Protection [EN 60529] housing

IP 20

Maximum values

Uo = 13.65 V / Io = 200 mA / Po = 683 mW; IIC: Co = 0.35 µF / Lo = 1.1 mH; IIB: Co = 1.8 µF / Lo = 6.2 mH; IIA: Co = 5.7 µF / Lo = 11.0 mH

Ambient temperature

-20 ... 60 °C

Electrical connection

terminal screws

Ambient temperature

-20 ... 60 °C

Protection [EN 60529] terminal

IP 20

Accessories (in scope of delivery)

screwdriver

Protection [EN 60529] terminal

IP 20

Protection [EN 60529] housing

IP 20

Protection [EN 60529] housing

IP 20

Electrical connection

terminal screws

Electrical connection

terminal screws

Accessories (in scope of delivery)

screwdriver

Accessories (in scope of delivery)

screwdriver
