Features
- Thermal mass flow sensor.
- Can measure air velocity and air volume.
- Multiple output option : 4 ... 20 mA / 0 ... 10 V / RS-485 / Frequency / Pulse ( Option ).
- Built-in temperature compensation, accurate measurement.
- Using constant temperature anemometer(CTA) technology, good sensitivity.
- Unit setting：[m/s], [ft/s], [Nm³/h], [L/min], [°C], [°F].
- Strong stainless steel housing, for a variety of harsh environme.

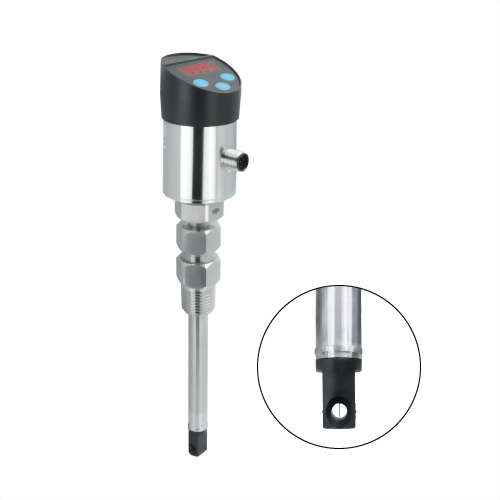

FTM06D is based on thermodynamic principles and can measure air velocity and air volume; there are 2 temperature sensors inside the probe: one for temperature measurement and the other one as a measuring conveyor after heating.
Temperature difference between the two as a basis for measuring flow rate. When the medium flow rate increases, the temperature difference decreases.
The temperature difference is converted to standard signal output after processing, which is why the flow rate can be measured by these two sensors. All-metal housing, suitable for a variety of pipe diameters.
Applications
Industrial process gas supply / Consumption and dry flow monitoring / Compressed air consumption measurement / Buildings / Factories / Clean rooms / Hospitals / Semiconductors / Electronics / Paper / Printing / Textiles / Steel / Food / Chemicals / Pharmaceuticals / Biotechnology industries
Specification
Input |
|
Air velocity sensor |
Thermal mass flow sensor meter |
Measuring range |
Air: 0 ... 120 Nm/s |
Minimum initial value |
0.1 m/s |
Installation angle effect |
＜3% of the measured value (When the installation angle＜10°) |
Output |
|
Output signal |
4 ... 20 mA / 0 ... 10 V / RS-485 |
Signal connection |
3-wire |
Warm-up time |
About 60 sec |
Response time |
t90≦3 sec |
Load resistance |
Voltage output: ≧100 KΩ |
Accuracy |
|
Accuracy |
0 ... 5 m/s : ±(1% of mv+0.06 m/s) |
Temp. influence |
0.2% / °C |
Uncertainty of factory calibration |
±1% |
Environmental |
|
Medium |
Non-corrosive gas |
Operating Temp. & Humid. |
0 ... 50°C / 20 ... 90%RH(Non-condensing) |
Storage Temp. |
-20 ... 85°C |
Fitting pressure |
16 bar |
Electrical |
|
Power supply |
DC 24 V ±10% |
Current consumption |
24 V: 110 mA |
Electrical connection |
M12 |
Installation |
|
Duct type |
Metal flange mount |
Certification |
|
Certification |
CE |
Protection |
|
IP rating |
IP65(IP67option) |
Electrical protection |
■ Reverse polarity ■ Over-voltage ■ Short-circuit |
Material |
|
Body |
SUS304 |
Probe |
SUS304 |
Probe head |
PC with glass fiber |
Weight |
480 g |
Display & Operation(See manual for details) |
|
Display value |
4 digits, Adjustable brightness |
Measurement display |
Out1(Default is Flow m/s ) |
Unit selection |
Unit setting: [m/s], [ft/s], [Nm³/h], [L/min], [°C], [°F] |
Function selection |
Output option (0 ... 10 V / 4 ... 20 mA) |
Download
Note : Design and specifications are subject to change without notice.
Note : Please make sure the product and the device which connect with RS-485 are on common ground, avoid damaged product.
