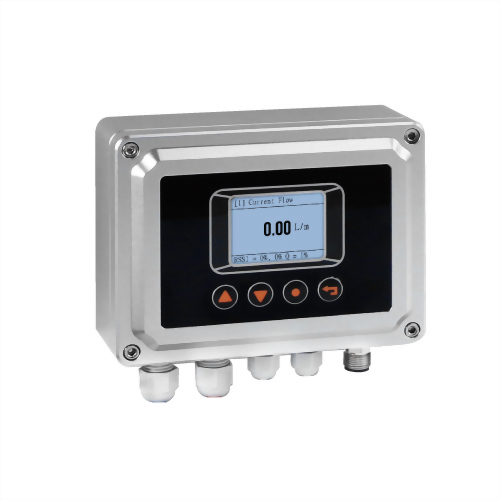

Features
● With ultrasonic technology, it can accurately measure the flow rate of 0.1 m/s.
● Wide measurement range (DN50 ~ DN300), easy installation
● 2″ LCD color screen displays flow rate and flow, easy to set with buttons

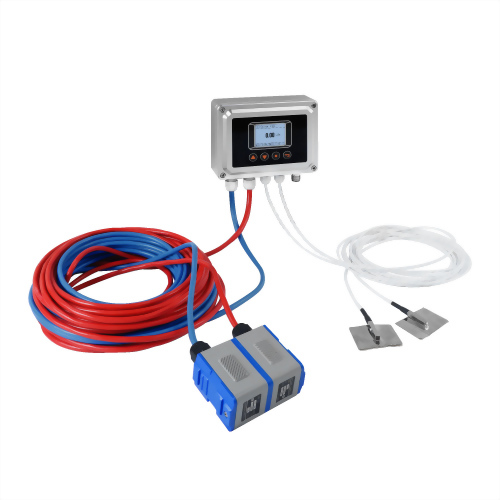

● Installed on the measuring pipe, the two are connected with a special cable and can be used with a temperature meter for measurement
● Wide measurement range (DN50 ~ DN300), easy installation
● 2″ LCD color screen displays flow rate and flow, easy to set with buttons
● Installed on the measuring pipe, the two are connected with a special cable and can be used with a temperature meter for measurement
Applications
Process / Energy-saving monitoring in industries such as petrochemicals / Water conservancy / Metallurgy / Chemistry / Machinery energy saving
Applications
Non-intrusive and high-precision measurement, suitable for various fluids and pipe sizes.
Specification
Input |
|
Sensor type |
Ultrasonic time difference |
Turndown ratio |
100 : 1 |
Measuring range |
0.1 ... 10 m/s |

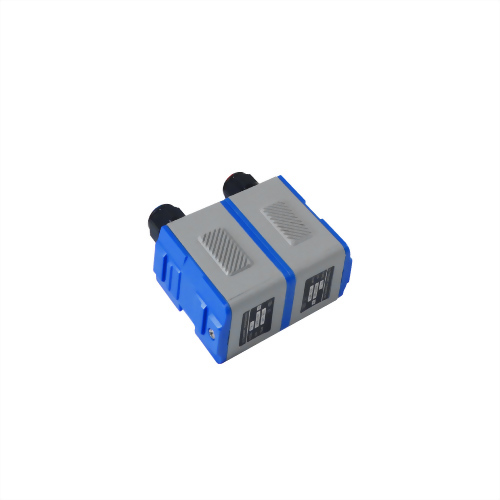

Transducers |
TM-1, cable 10 m |
Output |
|
Output signal |
4 ... 20 mA / 0 ... 10 V / RS-485 |
Temp. measurement |
Can connect Pt1000 thermometer (RS-485 reading) |
Load resistance |
Current output : ≦500 Ω |
Accuracy |
|
Accuracy |
±1% F.S. |
Display |
|
Display readout |
-99.99 ... +99.55 (Flow rate) |
Decimal point |
Button |
Sampling time |
1 cycle/sec |
Unit |
m/s、ft/s、L/min、CMM、CFM、CFH |
Response time adjustment range |
1 sec |
Environmental |
|
Operating Temp. & Humid. |
0 ... 50°C / 20 ... 85%RH(Non-condensing) |
Storage Temp. |
-25 ... 60°C |
Transducers Temp. |
-30 ... 90°C |
Medium |
Water, Sea water, Alcohol, Acetone, Methanol, Ethanol, Acetaldehyde, Peanut oil, Glycerin, Benzene, Toluene, Ethylbenzene, Petroleum, Pine oil, Ketone, Ethylene glycol |
Communication |
|
Communication methods & protocol |
RS-485 Modbus RTU |
RS-485 baud rate |
9600、19200、38400、57600、115200 bps |
Electrical |
|
Power supply |
DC 24 V ±10% |
Current consumption |
24 V : 110 mA |
Electrical connection |
M12 5P connector |
Pipe installation condition |
|
Pipe material |
Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Fiberglass |
Straight pipe |
Transmitter installation should be satisfied : upstream 10 D, downstream 5D, 30D from the pump |
Installation |
Clamp type |
Pipe diameter |
DN50 ... DN300 |
Certification |
|
Certification |
CE |
Protection |
|
IP rating |
IP65(Housing) |
Electrical protection |
■ Reverse polarity ■ Over-voltage |
Material |
|
Housing |
Aluminum alloy |
Probe |
PC |
Download
Note : Design and specifications are subject to change without notice.
Note : Please make sure the product and the device which connect with RS-485 are on common ground, avoid damaged product.
