Dew Point - Quick Measurement Kit

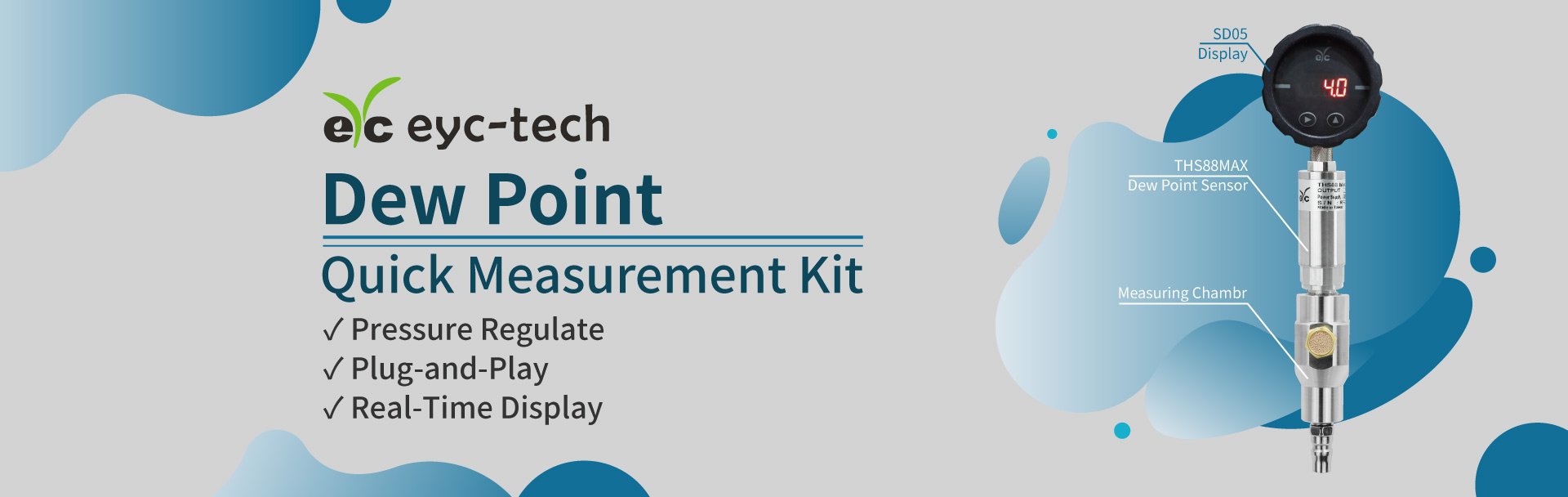

To meet the demand for high-precision dew point measurement in dry air systems, we have introduced a complete measurement package. This package includes the THS88MAX Industrial Dew Point Transmitter, a dew point measuring chamber, and SD05 Integrated Signal Indicator, offering a stable and reliable dew point measurement solution for various industrial applications.

Key Features

1. THS88MAX Industrial Dew Point Transmitter

Measurement range: -60 to +20 °C dp. High accuracy for low-humidity measurements, long-term stability, temperature compensation, and linear correction functions. Designed for various dry air applications.

2. Dew point measuring chamber

Traditionally, precise dew point measurement required multiple pressure regulation devices. To enhance usability and efficiency, our chamber features a quick-connect interface, enabling effortless one-second connection and immediate measurement. The adapter has a built-in pressure regulation system for direct dew point measurement.

3. SD05 Integrated Signal Indicator

Real-time dew point display with a clear and easy-to-read digital interface, enabling convenient on-site monitoring and data recording. Supports multiple output interfaces to meet diverse system requirements.

Advantages

• Rapid Pressure Regulator: Dew point measuring chamber with built-in pressure adjustment enables fast dew point measurement.
• Plug-and-Play: The all-in-one kit simplifies installation and allows quick deployment in industrial systems.
• Real-Time Display: The included display instrument provides real-time dew point readings, ensuring improved system performance.

Applications

• Dew point monitoring in dryers
• Compressed air systems

THS88MAX Industrial Dew Point Transmitter

Features: Suitable for compressed dry air systems and industrial drying systems.
Sensor type: Capacitive humidity sensor & Pt100
Operating range of dew point: -100 ... +20 dp°C
Output: RS-485+(4 ... 20 mA / 0 ... 10 V)
Accuracy: ±1 ... ±2 dp°C
IP rating: IP65(Housing) / Filter IP20(Housing)

SD05 Integrated Signal Indicator

Features : 4-digit LED display, suitable for integration with two-wire or three-wire transmitters
Display readout : 4 Digits(-1999 ... +9999)
Input : 4 ... 20 mA(2-wire) / 0 ... 10 V(3-wire)
Accuracy : ±0.2% F.S.
IP rating : IP65

Dew Point Measuring Chamber

Pressure Range: 2 … 16 bar
Flow: 4 … 8 LPM
Connection: G1/2” threads
Quick Coupler: Japanese C-type
Material: SUS304
