Features
Functional highlights

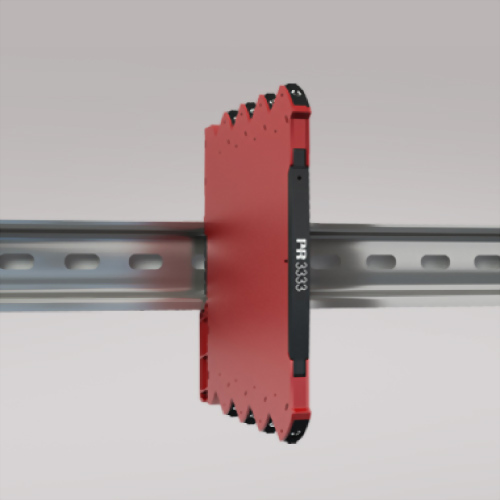

•Temperature converter which measures a standard 2-, 3- or 4-wire Pt100 temperature sensor, and provides a passive analog current output signal.
•All terminals are over-voltage protected, polarity protected and short-circuit protected.
•The device can be mounted in Safe area or in Zone 2 / Division 2 areas and is approved for marine applications.
Technical highlights
•Flexibly loop-powered by 3.3...35 VDC via connectors.
•Excellent conversion accuracy in all available ranges, better than 0.1% of span.
•< 30 ms fast response time with simultaneous sensor error detection when selected.
•Selectable 300 ms response time when signal dampening is needed.
•Meeting the NAMUR NE21 recommendations, this device ensures top measurement performance in harsh EMC environments.
•The device meets the NAMUR NE43 standard defining out of range and sensor error output values.
•Excellent signal / noise ratio > 60 dB.
•Wide ambient temperature range: -25...+70°C.
Programming
•Easy configuration via DIP switches.
•Selectable DIP settings for easy configuration of more than 1000 factory calibrated measurement ranges.
Mounting / installation
•The narrow 6.1 mm housing allows up to 163 units per meter.
•Units can be mounted side by side, horizontally and vertically, without air gap on a standard DIN rail, even at 70°C ambient temperature.
•Temperature converter which measures a standard 2-, 3- or 4-wire Pt100 temperature sensor, and provides a passive analog current output signal.
•All terminals are over-voltage protected, polarity protected and short-circuit protected.
•The device can be mounted in Safe area or in Zone 2 / Division 2 areas and is approved for marine applications.
Technical highlights
•Flexibly loop-powered by 3.3...35 VDC via connectors.
•Excellent conversion accuracy in all available ranges, better than 0.1% of span.
•< 30 ms fast response time with simultaneous sensor error detection when selected.
•Selectable 300 ms response time when signal dampening is needed.
•Meeting the NAMUR NE21 recommendations, this device ensures top measurement performance in harsh EMC environments.
•The device meets the NAMUR NE43 standard defining out of range and sensor error output values.
•Excellent signal / noise ratio > 60 dB.
•Wide ambient temperature range: -25...+70°C.
Programming
•Easy configuration via DIP switches.
•Selectable DIP settings for easy configuration of more than 1000 factory calibrated measurement ranges.
Mounting / installation
•The narrow 6.1 mm housing allows up to 163 units per meter.
•Units can be mounted side by side, horizontally and vertically, without air gap on a standard DIN rail, even at 70°C ambient temperature.
