Features
Applications
- Communications interface for programming and modification of operational parameters.

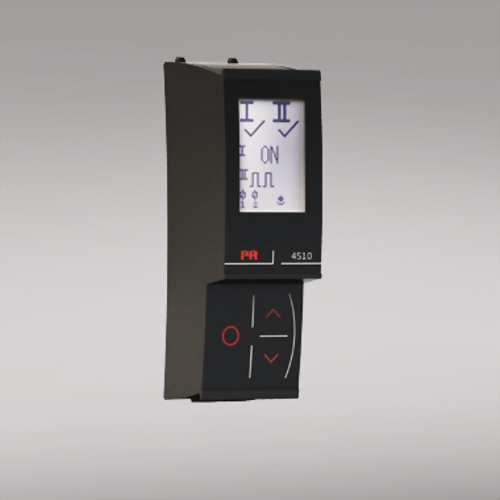

- The easily readable 4510 display can be used to monitor the process signal, simulate the output signal, indicate sensor errors and internal device errors.
- The 4510 can be moved from one device to another. The individual system 3000 / 4000 / 9000 device configuration of a transmitter can be saved and downloaded to subsequent transmitters.
- Easy-to-read dot matrix LCD display.
- Backup memory for loading and saving of device configuration.
- Programming access can be blocked by assigning a password. The password is saved in the device in order to ensure a high degree of protection against unauthorized modifications to the configuration.
- Mounting in Zone 2 / Div 2.
- All configuration data from a PR 3000 / 4000 / 9000 device can be transferred to a PC using the PR 4590.
- When mounted on devices that are installed upside down, a menu item allows the display on the 4510 to be rotated 180° and the up/down buttons to switch function.
- The PR 4510 is approved and certified as an add-on component for the PR 3000, 4000 and 9000 series of devices. All technical characteristics are valid with the PR 4510 attached.
Specification
Environmental Conditions
Operating temperature : -20°C to +60°C
Storage temperature : -20°C to +85°C
Relative humidity : < 95% RH (non-cond.)
Protection degree : IP20
Installation in : Pollution degree 2 & meas. / overvoltage cat. II
Mechanical specifications
Dimensions (HxWxD) : 73.2 x 23.3 x 26.5 mm
Dimensions (HxWxD) w/ 4000/9000 unit : 109 x 23.5 x 131 mm
Weight approx. : 20 g
Common specifications
Supply
Supply voltage : 6.5...20 V supplied from host 4000 / 9000 device
Max. required power : 0.15 W
I.S. / Ex marking
ATEX : II 3 G Ex ec IIC T5
IECEx : Ex ec IIC T5 Gc
FM, US : Cl I, Div 2, Gp A, B, C, D T5; Cl I, Zn 2, Grp IIC T5 Cl I, Div 2, Gp A, B, C, D T5; Cl I, Zn 2, AEx ec IIC T5 Gc
FM, CA : Cl I, Div 2, Gp A, B, C, D T5 Cl I, Div 2, Gp A, B, C, D T5; Ex ec IIC T5 Gc
Observed authority requirements
EMC : 2014/30/EU & UK SI 2016/1091
ATEX : 2014/34/EU & UK SI 2016/1107
RoHS : 2011/65/EU & UK SI 2012/3032
Approvals
ATEX : DEKRA 13ATEX0098 X
IECEx : DEK 13.0026 X
UKEX : DEKRA 21UKEX0167X
c FM us : FM22US0014X / FM22CA0009X
c UL us, UL 61010-1 : E314307
DNV Marine : TAA00000JD
Operating temperature : -20°C to +60°C
Storage temperature : -20°C to +85°C
Relative humidity : < 95% RH (non-cond.)
Protection degree : IP20
Installation in : Pollution degree 2 & meas. / overvoltage cat. II
Mechanical specifications
Dimensions (HxWxD) : 73.2 x 23.3 x 26.5 mm
Dimensions (HxWxD) w/ 4000/9000 unit : 109 x 23.5 x 131 mm
Weight approx. : 20 g
Common specifications
Supply
Supply voltage : 6.5...20 V supplied from host 4000 / 9000 device
Max. required power : 0.15 W
I.S. / Ex marking
ATEX : II 3 G Ex ec IIC T5
IECEx : Ex ec IIC T5 Gc
FM, US : Cl I, Div 2, Gp A, B, C, D T5; Cl I, Zn 2, Grp IIC T5 Cl I, Div 2, Gp A, B, C, D T5; Cl I, Zn 2, AEx ec IIC T5 Gc
FM, CA : Cl I, Div 2, Gp A, B, C, D T5 Cl I, Div 2, Gp A, B, C, D T5; Ex ec IIC T5 Gc
Observed authority requirements
EMC : 2014/30/EU & UK SI 2016/1091
ATEX : 2014/34/EU & UK SI 2016/1107
RoHS : 2011/65/EU & UK SI 2012/3032
Approvals
ATEX : DEKRA 13ATEX0098 X
IECEx : DEK 13.0026 X
UKEX : DEKRA 21UKEX0167X
c FM us : FM22US0014X / FM22CA0009X
c UL us, UL 61010-1 : E314307
DNV Marine : TAA00000JD
Download
Note : Design and specifications are subject to change without notice.
Note : Please make sure the product and the device which connect with RS-485 are on common ground, avoid damaged product.
