TYPE

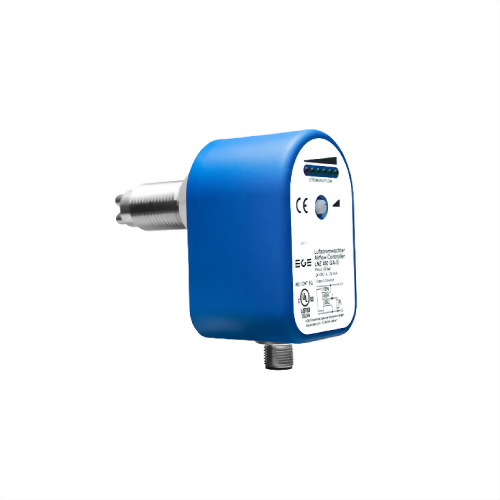

LNZ 450 GA-S

Product ID

P11111

Medium

air, non-explosive gas

Detection range air

0.5 ... 30 m/s

Process connection

G1/2

Sensor length L

48 mm

Output

analog output 4…20 mA

Output function

non linear

Supply voltage

24 V DC +/- 15 %

Current consumption max.

100 mA

Load RL

200 ... 500 Ω

Reverse polarity protection

✓

Ambient temperature

-20 ... 70 °C

Medium temperature

-20 ... 80 °C

Temperature gradient gaseous media

20 K/min

Start-up time

20 ... 90 s

Reaction time

4 ... 30 s

Compressive strength

30 bar

Material sensor touched by medium

stainless steel AISI 303

Material housing

stainless steel AISI 303, brass, PA, PBT

Protection [EN 60529]

IP 67

Electrical connection

M12 connector

Accessories

connecting cable SLG 3-2, SLG 3-5, SLW 3-2, SLW 3-5

Accessories (in scope of delivery)

2 x gasket G1/2 AFM 34, screwdriver
