TYPE

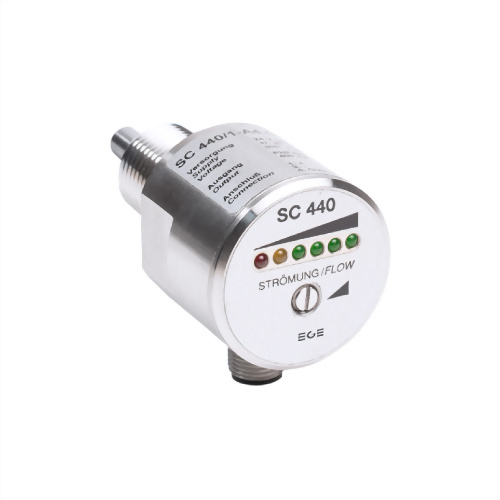

SC 440/1-A4-GSP

Product ID

P10523

Medium

water, oil

Detection range water

1 ... 150 cm/s

Detection range Oil

3 ... 300 cm/s

Process connection

G1/2

Sensor length L

48 mm

Output

switching output

Output function

PNP-NO

Supply voltage

24 V DC +/- 20 %

Current consumption max.

70 mA

Switching current max.

400 mA (20 °C)

Reverse polarity protection

✓

Voltage drop max.

2.5 V

Ambient temperature

-20 ... 80 °C

Medium temperature

-20 ... 80 °C

Temperature gradient fluids

250 K/min

Start-up time typ.

8 s (2 ... 15 s)

Reaction time typ.

2 s (1 ... 13 s)

Compressive strength

100 bar

Material sensor touched by medium

stainless steel AISI 316 Ti

Material housing

stainless steel AISI 303, stainless steel AISI 316 Ti, brass, PA

Protection [EN 60529]

IP 67

Electrical connection

M12 connector

Accessories

connecting cable SLG 3-2, SLG 3-5, SLW 3-2, SLW 3-5

Accessories (in scope of delivery)

2 x gasket G1/2 AFM 34, screwdriver
