eYc Temperature & Humidity and Air Velocity of Hot Wind Monitoring THS306&FTS85

Temperature & Humidity and Air Velocity of Hot Wind Monitoring
Tumbling Fluidized Bed Granulating-coating Drying Machine(Multiplex Coater)

eyc-temperature-_-humidity-and-air-velocity-of-hot-wind-monitoring-1.jpgeyc-temperature-_-humidity-and-air-velocity-of-hot-wind-monitoring2.jpg


Introduction

In the process of Granulation-coating drying in the traditional Chinese & Western pharmaceutical and spices powder particles, we usually use fluidized granulating-coating drying machine to let the multiplex powder particles to be agglomerated.
The main flow : The multiple powder particles are adhered by binder which is spayed into mixed tank via pump and compress air, and drying by introducing the hot wind in the meantime.

Solution

Our Customer is the pharmaceutical machinery manufacturer. During the process of mixed powder particles drying, the hot wind should be introduced into the mixing tank by the motor to mix and dry the different powder particles (the temperature is around 90 °C ) Therefore, we monitor the temperature and humidity within the mixing tank by eYc THS306, and monitor the air velocity within the hot pipe by eYc FTS85 to control the degree of mixing powder particles.


What is Fluid Bed Dryer

Normally rotary dryers can be used for drying and cooling the wide range of polymer materials. For effective processing, it is required control precise of time and temperature.

Main Function

Drying of powders / Mixing of powders and agglomeration

Applications

Chemical / Pharmaceutical / Dyestuff / Foodstuff / Dairy / Process Industries

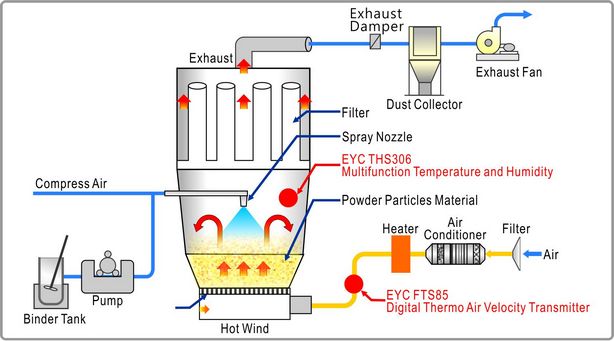

Principle

Suck the air from the surroundings into Fluid Bed Dryer .Heated up the air by heating system within the dryer. Make the particle powder in a uniform floating state. Emission the Evaporationof Water to achieve the purpose of drying, Or use the adhesive to dry granulation.

Benefits

  • By using eYc THS306 and eYc FTS85 to avoid damaging the quality of the raw material ranulations.
  • Remote monitoring and management local data and situation.

Product Information

eYc THS306 Multifunction Temperature & Humidity Transmitter (Remote type)


eYc FTM8485 Industry degree high accuracy thermo air velocity transmitter
