Features
● LED display : Instantaneous flow : 5-digit, Cumulative flow : 8-digit, accuracy ±0.2% F.S.
● Temperature and pressure compensation : Utilizes temperature and pressure measurements for precise density compensation and high accuracy flow calculations, with built-in formulas for various applications.
● RS-485 communication support : Adopts the standard Modbus RTU communication protocol.
● Auxiliary power supply : Provides two sets of DC 24V power supplies to simplify field wiring.
● Isolation design : Ensures mutual isolation between input, output, power, and communication interfaces.

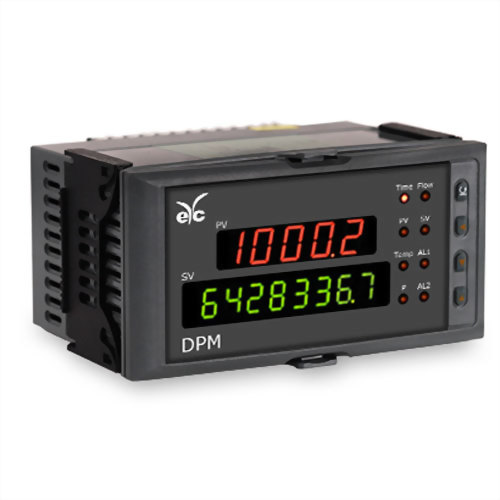

The DPM05 Flow Computer collects temperature, pressure, and flow signals to calculate flow rates. Suitable for liquid, gas, superheated steam, and saturated steam flow measurement and control, it supports energy management and consumption analysis for businesses.
● Temperature and pressure compensation : Utilizes temperature and pressure measurements for precise density compensation and high accuracy flow calculations, with built-in formulas for various applications.
● RS-485 communication support : Adopts the standard Modbus RTU communication protocol.
● Auxiliary power supply : Provides two sets of DC 24V power supplies to simplify field wiring.
● Isolation design : Ensures mutual isolation between input, output, power, and communication interfaces.
The DPM05 Flow Computer collects temperature, pressure, and flow signals to calculate flow rates. Suitable for liquid, gas, superheated steam, and saturated steam flow measurement and control, it supports energy management and consumption analysis for businesses.
Applications
Gas flow measurement / Differential pressure flow meter / Compressed air systems / Chemical processes / Steam usage monitoring
Specification
Display |
|
Display readout |
Instantaneous flow : 5-digit |
Decimal point |
0 ... 3 place |
Display |
LED display |
Sampling time |
500 ms |
Parameter setting mode |
Button |
Accuracy |
|
Display |
±0.2% F.S. ±1 digit |
Input |
|
Flow |
4 ... 20 mA, square root |
Pressure |
4 ... 20 mA |
Temperature |
PT 100 |
Output |
|
Signal Type |
Current : 0 ... 20 mA / 4 ... 20 mA |
Relay |
Alarm range : -199999 ... 999999 |
Communication |
RS-485 Modbus RTU |
Environment |
|
Operating environment |
0 ... + 50°C / 0 ... 85%RH |
Electrical |
|
Power supply |
AC 100 ... 240 V / 50 ... 60 Hz |
Auxiliary power |
DC 24 V ± 1 V / ≦30 mA |
Dissipated power |
6 W |
Isolation |
|
| Four-wat isolation | |
Protection |
|
IP rating |
IP54 (Front panel) |
Material |
|
Housing |
ABS |
Dimensions |
96x48x110 mm |
Cut out dimensions |
92x45 mm(+0.5 mm) |
Weight |
500 g |
