The latest released AFMP Average Flow Measuring Tube by eyc-tech is a state-of-the-art instrument designed to meet the rigorous requirements of industrial flow measurement. This measuring tube, which can be paired with a differential pressure transmitter, is versatile in a range of flow measurement applications. Integrating eyc-tech's innovative technology and multifunctional application advantages, the AFMP not only enhances measurement precision but also improves device stability and durability.
Core Technology

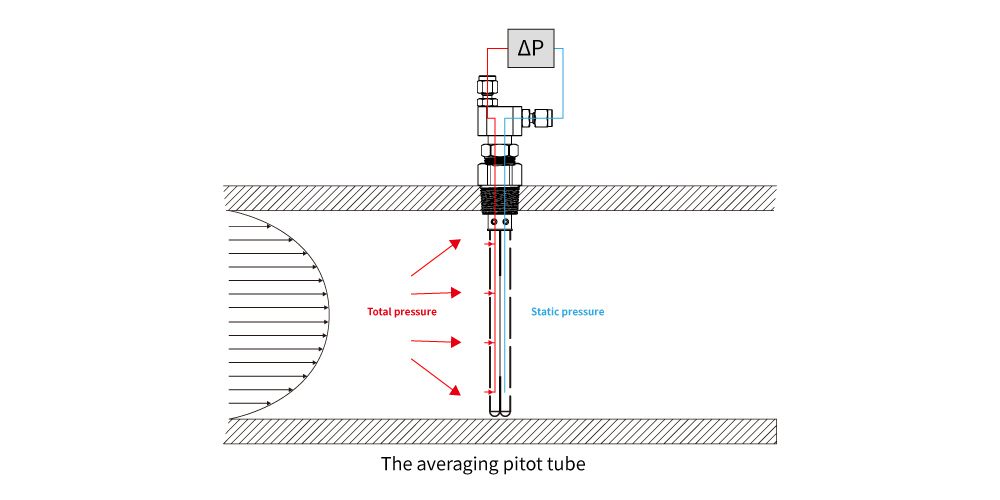

The AFMP Average Flow Measuring Tube is based on fluid dynamics principles, precisely calculating gas velocity by measuring static and total pressure differences. In large-diameter ducts, airflow velocity often varies between the center and near-wall areas, making single-point measurements insufficient for capturing the overall flow precisely. The AFMP utilizes a multi-hole Pitot tube design to average multiple airflow points, ensuring more precise and representative data. Additionally, this differential pressure-based flow meter is minimally impacted by airborne dust, making it ideal for use in dust-laden environments.
Product Features
- Pitot tube : Measure differential pressure caused by flow, combined with differential pressure sensor to calculate flow.
- Multi-Hole Structure : Averages differential pressure readings from multiple points for stable and reliable measurements.
- High-Sensitivity : Low pressure drop within the tube enables measurement of small value, with sensitivity down to 1 Pa.
- Durable Material : Made of SS316, providing strong corrosion resistance and long-term stability across diverse environments.
- Environment Resistant : Ideal for extreme conditions. Options for operating temperature up to 600C and pressure up to 10 bar.
- Dust-Resistant : Features a dust-resistant structure that resists clogging, ensuring stable flow measurement.
Applications
-

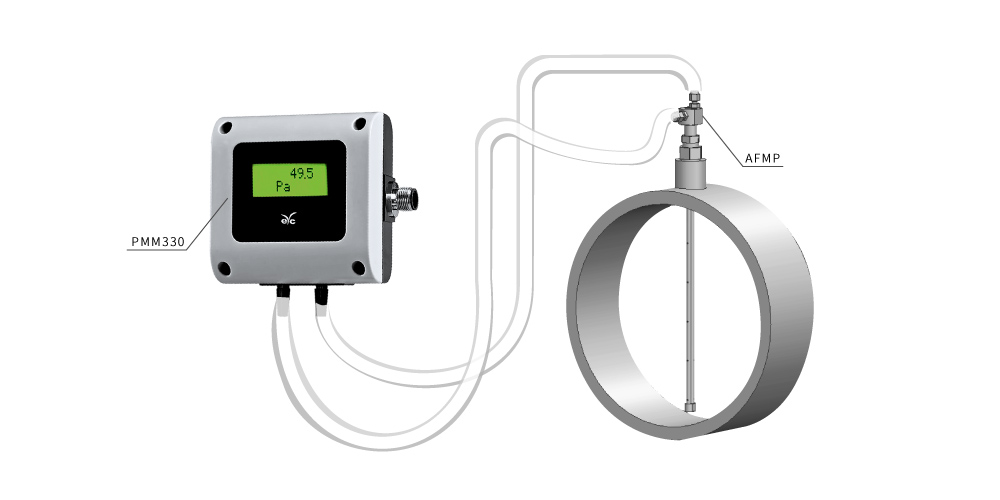

Low Air Flow: Equipped with eyc-tech’s PMM330 differential pressure transmitter using hot-wire differential pressure sensing technology, this setup offers high sensitivity and low zero drift, enabling precise measurement even under minimal differential pressures as low as 1 Pa. With its square-root extraction feature, the transmitter converts differential pressure to air velocity, measuring as low as 1 m/s, providing a high-precision solution for airflow and air velocity measurement. This combination is particularly suitable for precise monitoring of low air velocities in HVAC systems and cleanrooms, ensuring optimal environmental control.
-
Exhaust Air Treatment: Featuring a robust aluminum alloy housing, eyc-tech’s PHM330 differential pressure transmitter effectively resists external environmental interference, delivering stable and reliable flow rate measurement. The PHM330 is engineered specifically for industrial applications and is suitable for use in contaminated air environments. Its stable measurement capabilities support the monitoring of treatment processes, ensuring that systems meet regulatory standards, enhance operational efficiency, and reduce environmental impact.
-

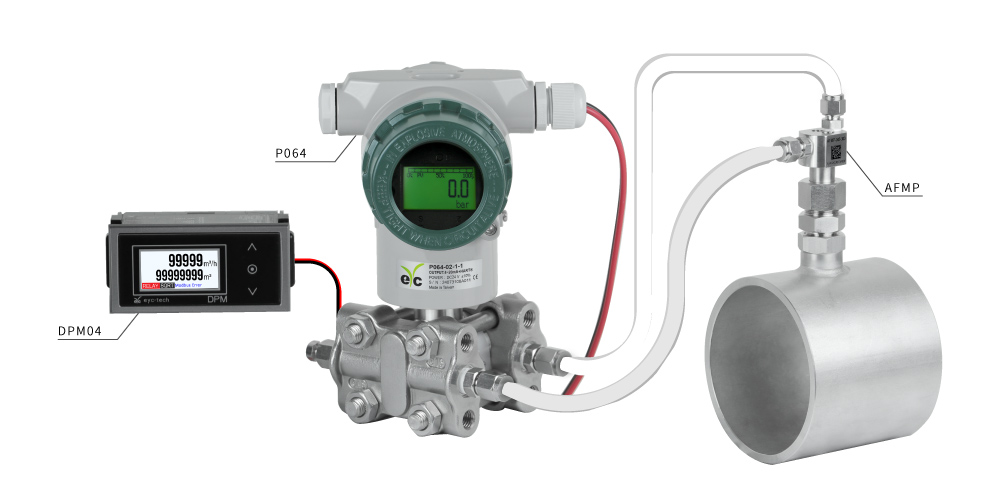

Pressure / Temperature Resistant: The eyc-tech P064 Digital Differential Pressure Transmitter, with its monocrystalline silicon differential pressure sensing technology and dual overload protection diaphragms, provides precise measurements of high-pressure, high-temperature flows. Combined with the DPM04 Flow Totalizer, this setup enables precise real-time and cumulative flow measurements, achieving efficient, stable control and monitoring.
AFMP Average Flow Measuring Tube (Pitot tube)
Features : Multi-point averaging. Suitable for large pipes. Resistant to high temperature and corrosion.
Operating pressure : Standard type : Max. 10 bar / High-temp. type : Max. 4 bar
Operating temperature : Standard type : Max. 200°C / High-temp. type : Max. 600°C
Length : 12"(300 mm)
PMM330 Differential Pressure Transmitter (Indoor)
Feature : Suitable for HVAC and light industry
Measuring element : Hot-wire type diff. pressure sensor, flow-through
Measuring range : ±50 ... ±1500 Pa
Output : 4 ... 20 mA / 0 ... 10 V / RS-485
Accuracy : ±1.5% F.S. ±3% M.V.
IP rating : IP65
PHM330 Differential Pressure Transmitter
Features : Suitable for industrial application. High pressure resistance.
Measuring element : Hot-wire type diff. pressure sensor, flow-through
Measuring range : ±50 ... ±1500 pa
Output : 4 ... 20 mA / 0 ... 10 V / RS-485
Accuracy : ±1.5% F.S. ±3% M.V.
IP rating : IP65
P064 Digital Differential Pressure Transmitter
Features：Suitable for industrial application. Can measure liquid differential pressure.
Sensor type : Monocrystalline silicon differential pressure sensor
Measuring range：0.1 ... 25 bar
Output：4 ... 20 mA+HART
Accuracy：0.075 ... 0.2%
IP rating：IP65
DPM04 Flow Totalizer
Features : 2" LCD display for air/liquid flow transmitters with RS-485 and relay output, for both instantaneous and cumulative flow monitoring
Display readout : Instantaneous flow : 5-digit / Cumulative flow : 8-digit
Input : Current / Voltage / Frequency / Pulse
Output : Current / Voltage / Relay / RS-485
Accuracy : ±0.1% F.S. ±1 digit
IP rating : IP65 (Front panel)
